2011 Amada HFE M2 2204 8 Axes Hydraulic Press Brake

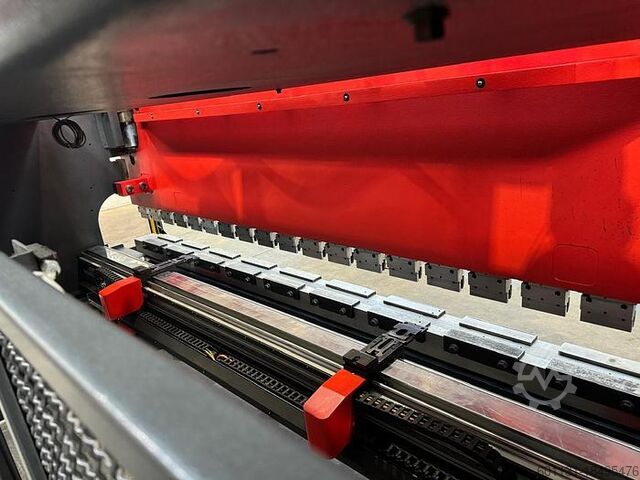

Amada HFE M2 2204 8 Axes Hydraulic Press Brake

The Amada HFE m2 2204 is a modern and sophisticated sheet metal processing machine specifically designed for the requirements of industrial manufacturing. It combines precise control technology with a user-friendly interface to enable efficient and more accurate processing of sheet metal materials.

Key Features:

- Hydraulic pressing force: With a pressing force of up to 220 tons, the HFE m2 2204 offers the performance required for demanding applications.
- Versatility: The machine is capable of processing a wide range of materials, including steel, stainless steel and aluminum, making it suitable for different manufacturing processes.
- Precision: Thanks to advanced technologies, the HFE m2 2204 ensures high dimensional accuracy and repeatability, resulting in minimal scrap rates.
- User-friendly control: With an intuitive control panel and advanced software, the machine allows easy programming and adaptation to different production requirements.
Pgedpfx Abovyq Uyjgsw
- Safety features: The HFE m2 2204 is equipped with various safety features that ensure the protection of the operator and the safe operation of the machine.

Overall, the Amada HFE m2 2204 is a reliable choice for companies that need a powerful and precise sheet metal processing solution. Its advanced features and ability to customize make it a valuable investment in modern manufacturing processes.

Ink. Tool
Pressing force: 2,200 KN
Folding: 4280 mm
table width: 180 mm
distance between the posts: 3760 mm
Throat: 420 mm
opening: 470 mm
stroke: 200 mm
working height: 960 mm
amount of oil: 160 L.
connected load: 20 kW
approach speed: 100 mm / s
Maximum bending speed: 10 mm / s
return speed: 100 mm / s
total length (L): 5655 mm
total width (B): 2620 mm
total height (H): 3080 mm
Total weight: 17t
operating hours: 5500
Total weight: 17t
return speed: 100 mm / s
total length (L): 5655 mm
total width (B): 2620 mm
total height (H): 3080 mm
table width: 180 mm
distance between the posts: 3760 mm
Throat: 420 mm
opening: 470 mm
stroke: 200 mm
working height: 960 mm
amount of oil: 160 L.
connected load: 20 kW
approach speed: 100 mm / s
Maximum bending speed: 10 mm / s
