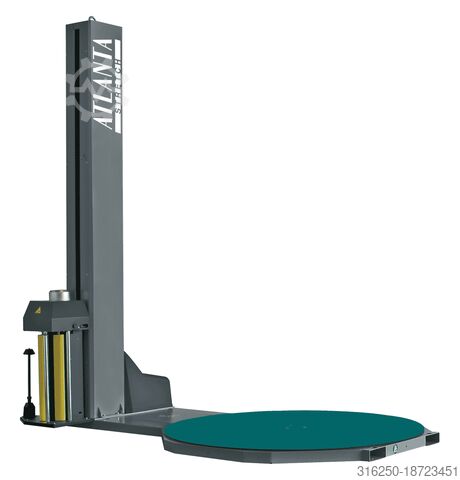

Pallet wrapper turntable stretching

ATLANTA mit Drehteller 2200mm SYNTHESI 200% Vorreckung

Stretch Winder Synthesi

TECHNICAL DETAILS
Turntable / base frame / Ø 2,200 mm
Max. pallet dimensions: 1,550 x 1,550 mm
Max. load capacity: 2,000 kg
Wrapping height (pallet included) 2,200 mm

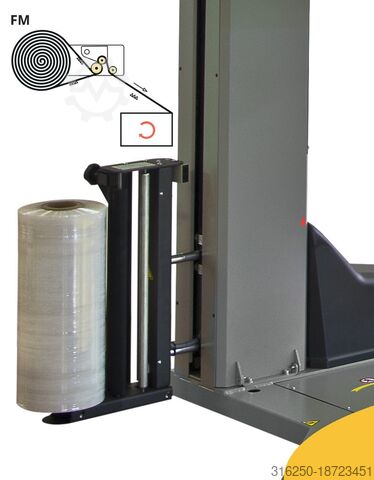

FILM SLIDE TYPE "OPRS - ONE PRE STRETCH"
Film pre-stretch ratio set to 200%
Foil application tension electronically adjustable in the programs in different steps

Height of turntable 75 mm
Height query by light button
Frequency-controlled turntable drive (soft start - start/stop)
Frequency controlled carriage speed up/down
Signal tone at the start of wrapping and stop at the end of the cycle
Emergency stop switch according to CE regulations
The turntable always stops in the same starting position
Fall protection for the film slide
Push button for switching on the machine and start & stop function & reset according to CE standards Ø 22 mm

ADJUSTABLE PARAMETERS ON THE CONTROL PANEL
All function parameters can be set via the display
F00 - Screen lock program change
F02 - Infinitely variable turntable speed 5-12 rpm
Lifting carriage speed can be adjusted up and down independently of each other
F03 - lifting carriage speed up from 1.3 up to 5.4 m/min
F04 - carriage speed down from 1.3 to 5.4 m/min
F05 - Number of wraps on the pallet foot (1 - 10 wraps)
F06 - number of wraps on the pallet head (1 - 10 wraps)
F09 - Winding height photocell delay
F13 - F16 - Foil application tension foot & head wrapping / ascent & descent independently adjustable
F62 - Ergonomic height for film change
Foil consumption display (optional)

ADJUSTABLE WRAPPING PROGRAMS ON THE CONTROL PANEL
6 storable winding programs
F01 - 1 - cross winding (up/down)
F01 - 2 - Single wrap (only up or only down)
F01 - 3 - Push button for manual functions
F10 - F11 - Wrap cycle with preset start and stop height
F12 - Winding to a stored height (switching off the light button for the height)
F22 / F23 - Winding cycle for cover sheet film
Pedpjv Npx Nefx Abgjgw
F29 - Soft start cycle for edge protection application
F30 - F31 - Wrap cycle with gain and adjustable number of wraps
Soft start to reduce film tears on sharp pallet edges
Winding cycle with manual or motorized line formation (optional)
Reinforcement cycle via push button

Optionally possible:
Turntable size up to Ø2600 mm
Mast height up to 3900mm
ramp
mounting frame
Light scanner for black products
cutting device
Etc.

Other systems available from the Ludwigsburg warehouse.
Some images may contain options that are subject to a surcharge.

Illustration similar
