Vacuum Extrusion Press

Dorst V10

Manufactured by DORST Technologies (Germany)
Year of manufacture 2007
Max. worm diameter, mm 92
Max. conical/cylindrical worm diameter, mm 92/56 (double threaded 92 mm)
Max. conical/cylindrical pug diameter, mm 25 (double threaded 50 mm)
Drive power - feed/compression, kW 4.0/5.5
Temperature range, °C +3…+80
Machine dimensions, mm 2050 x 1900 x 600
Machine weight, kg 900


The DORST Type V screw-type vacuum extrusion presses are engineered for the continuous production of:
+Solid pugs
+Hollow pugs
+Profiled pugs
These presses are ideal for ceramic bodies, hard metals, and other special materials that are challenging to extrude. Suitable for both small diameters and materials requiring high extrusion force, the Type V machines deliver precise shaping using ceramic and metal powders.
Used for extrusion of plastified materials like:
+Aluminum oxide, titanium oxide, zinc oxide
+Steatite, carbides, silicon nitride, boron nitride
+Refractory clays, ferrites, honeycomb structures
+Special compositions for lead pencils, ceramics, and metal-matrix components
Fedpfx Asxwd Iksh Eepp

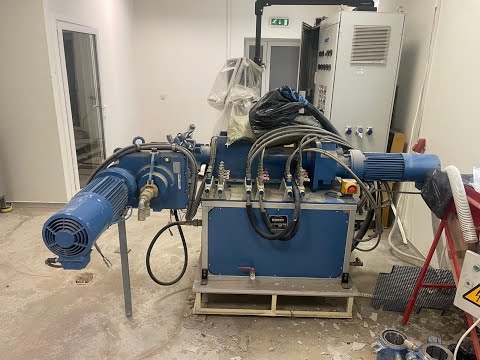

Equipped with tilt-kneader AMK III U 8/IV. Machinery was used to process just 300 kg of titanium oxide in total. It is in excellent condition.
