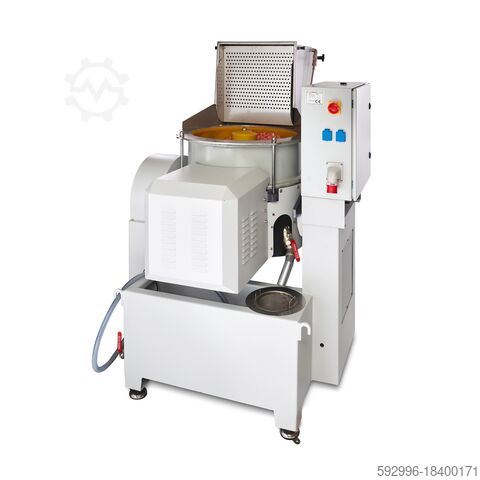

Vibratory finishing system

Pers Group Turbo - Line 120 S

The Turbo-Line 120 “S” model has a stainless steel ejection box mounted directly on the deburring machine.
When the bowl lowers, the chips fall through a grid while the parts to be deburred remain on top.
Fgedpfx Aevvu Snsg Aei

This Turbo-Line machine includes a
120-litre drum with vertical, straight sides and a separate base that rotates at an adjustable speed, normally between 115 and 135 rpm, but adjustable from 50 to 180 rpm.

During operation, the grinding bodies inside the bowl create a uniform, spiral movement reminiscent of a twisted sausage.

All areas of the machine that come into contact with the product, including the drum and the base, are coated with at least 26 mm of yellow polyurethane (PU) to ensure a long service life.

The 120 liter work bowl can process up to 50-60 liters of product per batch, depending on the shape and size of the parts. The deburring parameters such as time and speed are individually controlled via a manual touch screen.

The addition of water and compound is done via a manually adjustable ball valve, which is included in the delivery.

The finished products are discharged by tilting the bowl, a process controlled via the touch screen. The emptying speed is also adjustable via the frequency converter on the touch screen.
