Tube filling machine & Tube Labeller

Rigao Machinery Corp. Tube Labeller/Filler and Sealer

2011 Rigao Machinery Corp Plastic/PE/Laminated Tube Labeller and Tube Filler & Sealer with Cooler

This machine is in "as new " condition only running a few thousand tubes for commissioning. It was purchased for a specific purpose, which did not materialise. The system can be run separately (labeller and Filler/Sealer) or as one continuous line. Comes with original tool kit, spares and the option of a 12 month warranty through a UK Based Rigao Specialist. This same company could potentially commision the machine if required (price on application).

Plastic/PE/Laminated Tube Filler and Sealer with Cooler

○ The machine is used to fill and seal plastic tube, capable of tube loading, tube code registering, filling, hot air sealing, code printing, trimming and feeding off line a finished tube.
○ Machine contacting parts are made of 316L stainless steel which is clean and sanitary.
○ With a built in safety device, the machine will be shut down if the door is open. There is also an overload protection provided.
Parameter
Filling volume 5-250ml（by changing different filling system）
Filling accuracy ≤±1%
Capacity 1800-2400pcs/hour (Depend on tube size and product viscosity）
Tube diameter ф13-50mm (by changing tube tooling – 35, 40 & 50mm tooling available).
Tube length 210mm (Max. Length)
Hopper volume 40 L
Power 380V /50Hz 3Phase
Air pressure 0.5-0.7MPa
Equipped motor 1.1 Kw

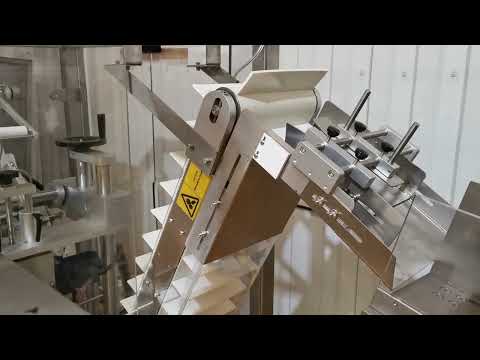

Plastic/PE/Laminated Tube Labeller with Auto Feeder

Tube size： Φ20-50mm，Length: 20-240mm
Mandrel sizes: Φ35mm, Φ50mm
Labelling speed： 60-100 tubes/minute（vary with tube and label size）
Labelling accuracy： ±0.5mm（excluding tube or label difference）
Label size： ID: Φ75mm; OD: Φ300mm; Width: 170mm
Compressed air： 0.4-0.7Mpa，3L/min.
Ijdpfx Adst Ami Ueietb
Power supply： 220VAC±5% 50/60Hz 1.2Kw
Machine dimension： (L)2,252×(W)1,350×(H)1,875

Configuration list:
S6120 servo label out Japan Yaskawa
Label detecting eye Japan Keyence
Tube detecting eye Japan Keyence
Label roller motor transmission Japan Panasonic
Stuck tube clearing device Japan Panasonic
High precision CAM divider Taiwan RU80DF
Pressure roller wheel device Japan Panasonic
PLC control system Germany Siemens
Touch screen Taiwan Weinview
