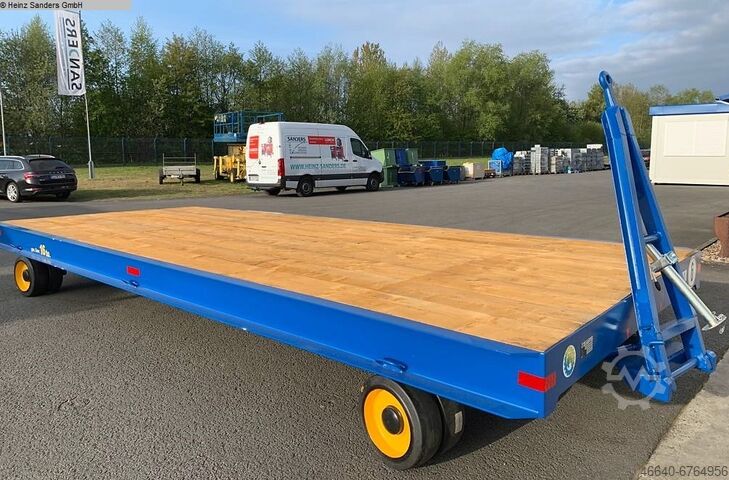

Heavy Goods Trailer

AWI PAAV 16t 6000 x 2500mm

16000 kg
length 6000 mm
width 2500 mm
loading area height 700 mm
Heavy-duty trailer - industrial trailer - Made in Germany

- Available immediately from stock

Frame:
- Frame made of stable profile steel
Gedohrrp Rspfx Apieka
- Platform made of impregnated softwood
- Protected all around with a steel edge, statically designed
- 6 lashing rings welded on

Steering:
- The steering takes place via 2 axles with Ackermann steering

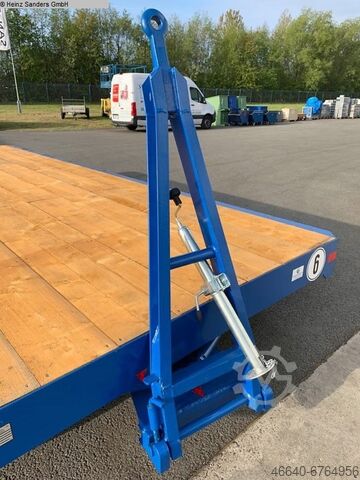

- the steering drawbar is removable and can be hooked in on both sides
- Steering angle approx. 42°
- all rotating parts are with maintenance-free slide bearings (lubricated for
life)
Equipped with ball bearings
- Towing eye: 40 mm Ø with wear ring
- Fork support height adjustment for better coupling to the towing vehicle

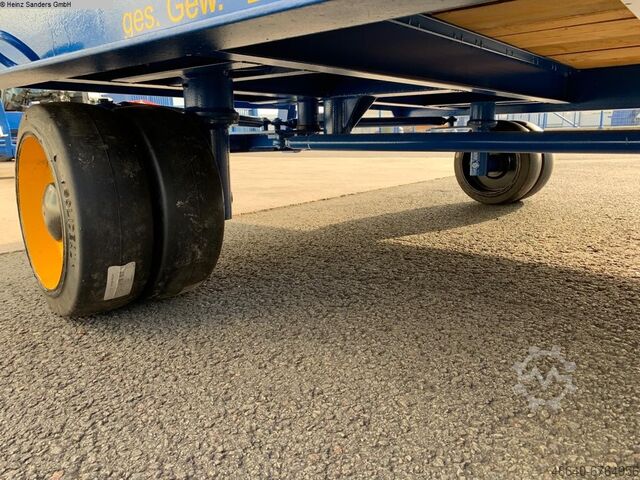

Wheels
- the trailer is equipped with 4 heavy-duty wheels with elastic rubber covering
Ø425mm, total width 300mm and ball bearings.
