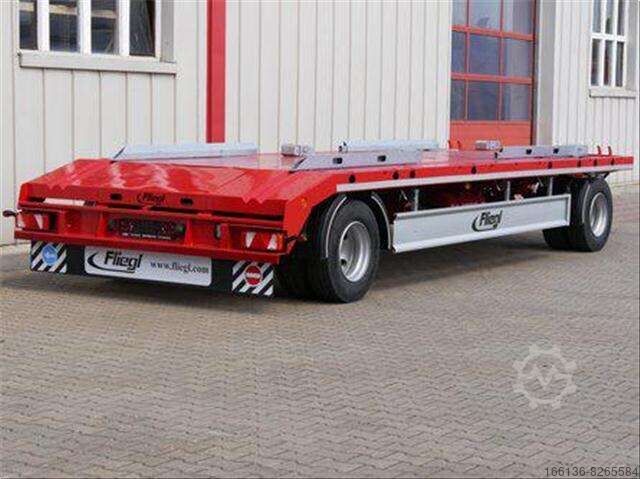

Fliegl ZPS 200 K Jumbo Z

Customized transport solution
Configure your Fliegl vehicle according to your requirements. The vehicle shown is an example. Production and equipment are carried out individually according to customer requirements.

Chassis, turntable, waste disposal
Fine-grained steel welded construction
Container locking system:
- 2 pairs of locking hooks recessed in the floor
- pneumatic operation
The container locking system is designed as a 2-point system, operating from the inside, and it is not possible to lock roll-off containers with an internal frame (for transporting roll-off containers with a subframe according to DIN 30722).
Note: At the beginning of the roller recess at the front, the container must be pushed in completely flat!
Longitudinal guide rails can be adjusted laterally and removed, rails approx. 115 mm high
Turntable with robust ball bearing
8 pairs of lashing eyes recessed at the top and on the side in the outer frame, each with a capacity of 5 tons
7 pairs of clevis pockets recessed in the outer frame, inside 70 x 40 mm (can be converted to 5-ton ring lashing eyes, not included in the scope of delivery)
2 chock blocks with holder
Aluminum side impact protection
Steel underrun protection
Quarter panel fenders according to EC
with anti-splash flaps according to EC
Coupling device, trailer, turntable
Drawbar with tested 40 mm drawbar eye
Axles + suspension
SAF drum brake axles
Axle/chassis laser-aligned to reduce tire wear and fuel consumption
Parabolic suspension with maintenance-free steel-rubber bearing
Wheels and tires
235 / 75 R 17.5
according to the manufacturer's choice
Godpfxsi Ri Nuj Ab Njiw
Steel rims in twin arrangement, factory silver
Braking system
2-line compressed air braking system
Spring-loaded parking brake
2 fail-safe coupling heads at the front, with connecting lines to the towing vehicle
ABS and ALB, with ABS plug at the front, with connecting cable
Note: The trailer may only be towed by towing vehicles that guarantee the effectiveness of the ABS!
Electrical system
24 volts, multi-chamber lights, yellow LED lighting on the side
2 white position lights at the front
2 white/red outline lights at the rear
2 x 7-pole fail-safe plugs at the front, with connecting cable
Floor
Steel floor
Roller recess for container recessed in the floor at the front for roll-off containers from 5,000 - 7,000 mm in length
Note: Slight floor waviness due to welding distortion is possible!
Ramps
Lockable storage space for ramps below the loading area
Operating instructions
A special permit is required for an axle load of 10,000 kg. The permit must be applied for individually in each federal state, and the legislator does not have to guarantee approval for 20 tons GVWR. Customer risk.
The specified total weight is technically possible, but depending on the load, the total weight may not be reached while complying with the permissible axle/support and saddle loads. (Poor driving and tracking behavior is possible due to incorrect load distribution)
Country of registration / signs
Country of registration: Germany
with Dekra inspection and certificate (according to §13 EC - FGV)
24/7 service hotline
prepared for single-line license plate holder
Contour marking with reflective strips according to ECE R 048, white on the side and red at the rear
Warning sign according to ECE - 70
Paintwork
Frame DB 7350 Novagrau
15 years warranty against rust
Note: Floor waviness due to hot-dip galvanizing is possible!
Drawbar, KTL black
Note: Archive images!
