Telescopic handler

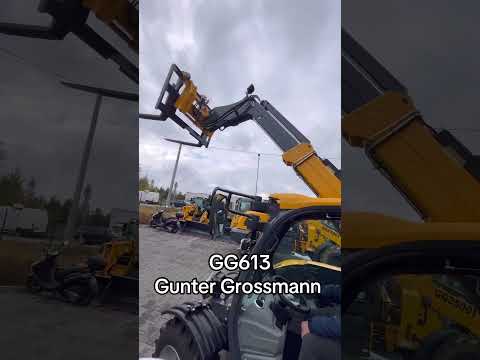

Gunter Grossmann GG613

GG613 Telehandlers

The GG613 is a modern, compact telescopic loader that excels in demanding tasks across construction, agriculture, and industry. It delivers high power, precise control, and reliability, ensuring maximum performance in all conditions.

Perkins 403J-11T Engine – Power and Efficiency

Powered by a three-cylinder, turbocharged Perkins 403J-11T engine with a displacement of 1.1L (18.4 kW at 2800 rpm), this engine meets emission standards and delivers optimal torque with minimal fuel consumption.

Hydrostatic Drive and PWG Hydraulics

The hydrostatic drive system combined with the PWG hydraulic pump offers a flow rate of 28.6 l/min (optional 41.6–70 l/min) at a pressure of 225 bar, providing smooth and precise control for efficient management of attachments.

Lifting Height and Operating Capacity

The GG613 telehandler provides a maximum lifting height of 5280 mm with a standard bucket and 4981 mm with pallet forks, making it an ideal solution for loading and transporting materials without the need for additional equipment.

Stability and Operator Comfort

Thanks to its low center of gravity and wide wheelbase, the machine offers excellent stability and safety. The operator’s cab is ergonomically designed, delivers outstanding visibility, and features hydrostatic power steering for precise maneuvering on challenging terrain.

Efficiency and Economy

Equipped with a 33L fuel tank and a 36L hydraulic oil tank, the machine supports long periods of operation without frequent refueling. The 0.5 m³ bucket capacity and a maximum lifting capacity of 1200 kg ensure high productivity and operational efficiency.

Compact Dimensions and Maneuverability

Maximum load: 1200 kg
Operating weight: 2900 kg
Engine: Perkins 403J-11T
Number of cylinders: 3
Engine type: Water-cooled, turbocharged, four-stroke
Rated power / speed: 18.4 kW / 2800 rpm
Displacement: 1.1 l
Drive type: Hydrostatic axle drive
Axle: Planetary drive on steering axle
Hydraulic system: PWG
Pump type: Gear pump
Flow rate: 28.6 l/min (optional 41.6–70 l/min)
Pump pressure: 225 bar
Fuel tank capacity: 33 l
Hydraulic oil tank capacity: 36 l
Bucket volume: 0.5 m³
Total attachment tilt angle: 148°
First gear – speed: 0–8 km/h
Second gear – speed: 0–20 km/h
Tyres: 10.0/75 - 15.3
Overall length (with standard bucket): 3944 mm
Overall length (with pallet forks): 4081 mm
Overall length (without standard bucket): 2977 mm
Hinge point bucket to axle center: 450 mm
Wheelbase: 1922 mm
Rear overhang: 427 mm
Cabin height: 1995 mm
Maximum working height (with standard bucket): 5280 mm
Maximum working height (with pallet forks): 4981 mm
Maximum boom pivot height: 4537 mm
Hedpfoxr Rwbsx Acvew
Load height with extended boom: 4163 mm
Load height with retracted boom: 2949 mm
Load height (with pallet forks): 4301/3087 mm
Tipping height with extended boom: 3566 mm
Tipping height with retracted boom: 2352 mm
Working distance: 476 mm
Maximum reach at load height: 2289/932 mm
