Lippert belt conveyor belt conveyor GF 780-650-500

Lippert GF 780-650-500

Lippert belt conveyor GF 780-650-500
RA1430
The Lippert conveyor belt is from 2001 and in good (used) condition. Lateral guides and/or light barriers can be installed on request at extra cost. Supports are not included in the delivery. These are optionally available on request.
The pictures of the conveyor system shown here were taken in a logistics center while still installed.

Prjdpfxjk Abahe Abged
Technical data:
Conveying length (NL): 780 mm
Framework width (NB): 650 mm
belt width (GuB): 500 mm
height (BH): 105 mm
support feet: optionally available
Conveying speed (v m/s): with frequency converte adjustable

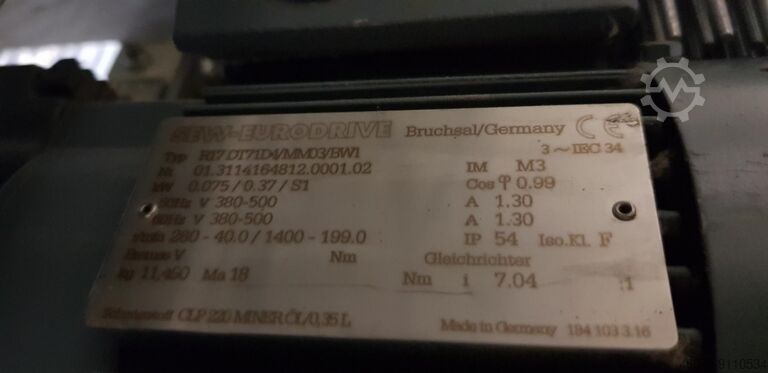

Drive: SEW gear motor R17DT71D4/MM03/BW1
Electrical data: 50Hz V380-500, kW 0.075 / 0.37 / S1
Deflection roller (UR): Ø = 34 mm
Drive drum (AT): Ø = 81 mm
Belt: Type SNB-5E
Year of construction: 2001
Optionally available:
motor with MOVIMOT frequency inverter to control the speed
Supports
Side guide one and both sides
