Coordinate Measuring Machine inline

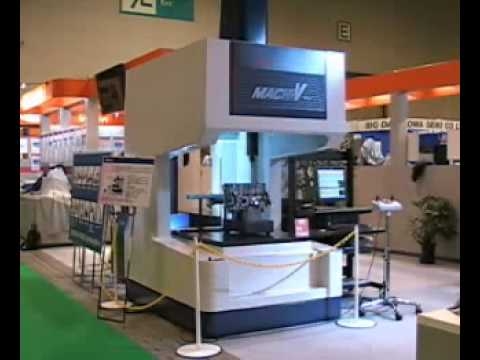

Mitutoyo CNC KMG, MACH-V9106

Coordinate measuring machine for inline and prduction use
from Mitutoyo in good condition, built 2012, installed 2014
Controller Mitutoyo UC240, Probe Renishaw PH10MQ/TP7,
Software Mitutoyo MCOSMOS-1 V3.5
Measuring ranges:
X – axis 905 mm
Y – axis 1005 mm
Z – axis 605 mm
Accuracy acc. ISO 10360 MPEE = [2,5 + 3,5L/1000] µm
at temperature range 18… 22 °C
Base material Steel
fixing holes M8 x 1,25
Scales Mitutoyo Linear Scales
Scale Resolution 0,0001 mm
DC motores with encoders
Guideways linear guides
Probe Renishaw PH10MQ with PHC10-2 plus (used)
Probe Renishaw TP7 optional with ACR-3 (used)
Computer Workstation WIN 10 (used)

or equipment on demand e.g. upgrade to Renishaw scanning probe

Installation and Calibration € 5.000,-- plus travel expenses

On demand:
Blsdpfx Aeh Nu Uhji Djk
- SP25M + FCR rack instead of TP7 ( + € 12.000,--)
- Upgrade PH10MQplus (€ 8.000,--)
