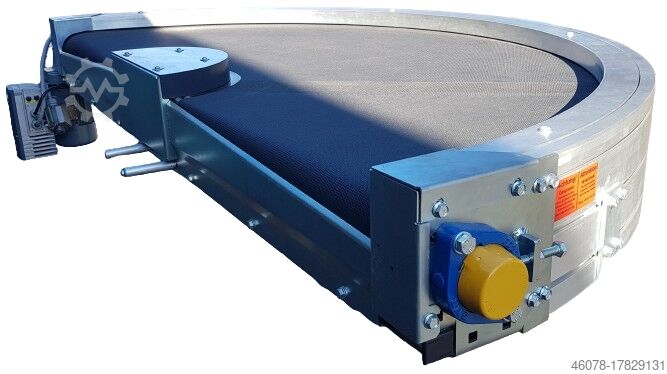

Left bend belt conveyor curve

Transnorm 180°-800-700-IR200

Transnorm belt curve conveyor left GKF 180°-800-700-IR200 - Exhibition machine
RA2317
Technical data:
Frame width (NB): 800 mm, 2000 mm Diameter
Frame width with Bearing cover and motor: 2200 mm Diameter
belt width (GuB): 700 mm
height (BH): 200 mm
height with motor (MH): 350 mm
Inner radius (IR): 200 mm
Conveying angle: 180° degrees
Conveying speed (v m/s): 0,38-1,14 m/s

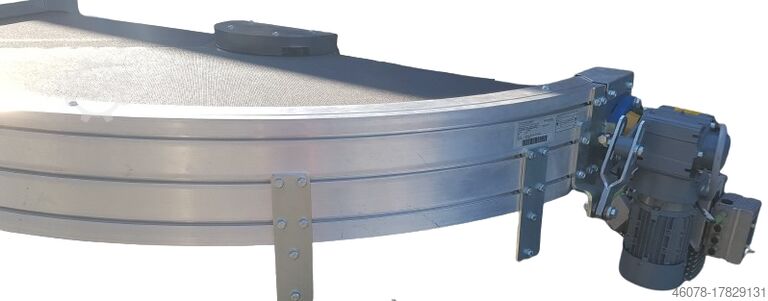

Drive: Nord gear Motor with Frequency converter for stepples speed controll
Electrical data: 50Hz V380-500, kW 0,37 / S1
Kedsvadknopfx Am Hsdk
Year of construction: 2020
Incl. support, current height 820mm
Optionally available:
Supports, if deviating from the current height
Sideguides
Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, Gattingerstreet 11 B & C, 97076 Würzburg
