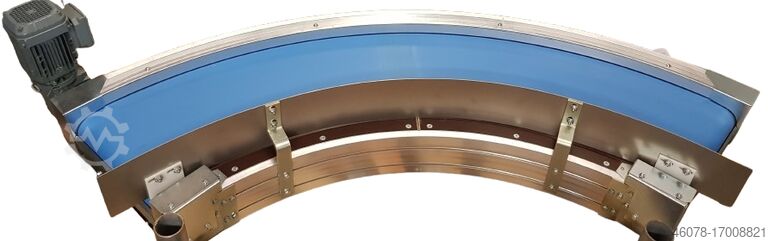

Left bend belt conveyor curve

Transnorm 90°-600-400-IR1000

Transnorm belt curve conveyor left GKF 90°-600-400-IR1000 - NEW
RA2307
Technical data:
Frame width (NB): 600 mm
Frame width with Bearing cover and motor: 850 mm
belt width (GuB): 400 mm
height (BH): 220 mm
height with motor (MH): 350 mm
Inner radius (IR): 1000 mm
Conveying angle: 90° degrees
Conveying speed (v m/s): 1,0m/s

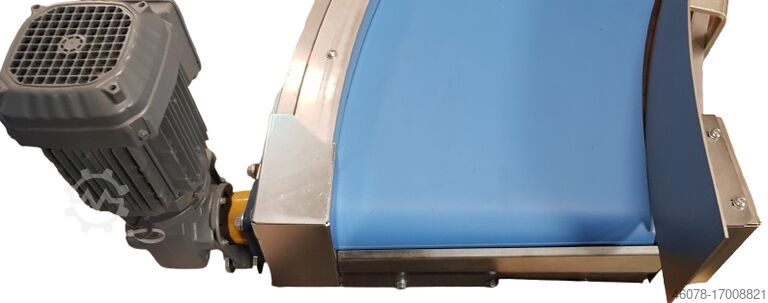

Drive: SEW gear motor
Gjdpfxeuicgzo Ab Ueug
Electrical data: 50Hz V380-500, kW 0,75 / S1
Year of construction: 2021
Height Sideguides: 194 mm
Optionally available:
Supports
Frequency converter for stepless speed control
