Belt curve conveyor 160° right

Transnorm GKF 3900-750-550 IR850

Transnorm belt curve conveyor GKF 3900-750-550 IR850
RA1382
The Transnorm belt curve is in good condition (used) and fully functional. It has a gear motor of the brand SEW. Supports and are not included in the scope of delivery. They are optionally available on request.
Belt curves are often used in intralogistics for the internal transport of unit loads and are indispensable in modern distribution centers.
Transnorm belt curves convince with performance and reliability. Thanks to a low-tension drive over the entire belt width, long operating times are no problem. Conical drums and a specially developed belt guide system ensure the highest possible running smoothness.
The pictures of the conveyor system shown here were taken in a logistics center while still installed.

Technical data:

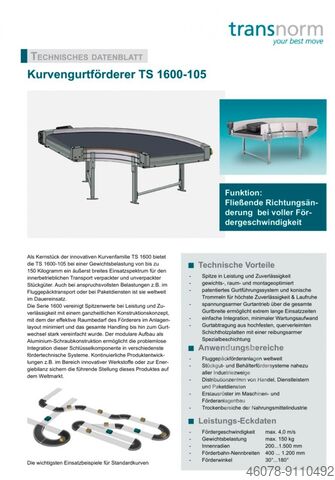

Type designation: Belt curve conveyor TS 1600-105
Conveying length middle radius (NL): 3900 mm
Frame width (NB): 750 mm
belt width (GuB): 550 mm
height (BH): 210 mm
Inner radius (IR): 850 mm
Conveying angle: 160° degrees
support feet: optionally available
Conveying speed (v m/s): adjustable up and down with frequency converter
Drive: SEW gear motor SA37/T DT80N4/MM07/BW1
Electrical data: 50Hz V380-500, kW 0.15 / 0.75 / S1
belt: double layer, green, smooth
Year of construction: 2001
Characteristic / Accessories: Lateral guides included on both sides
Optionally available:
Supports
Side guide one and both sides
Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg
