Counter

AMTEC CTM D22 16-lane

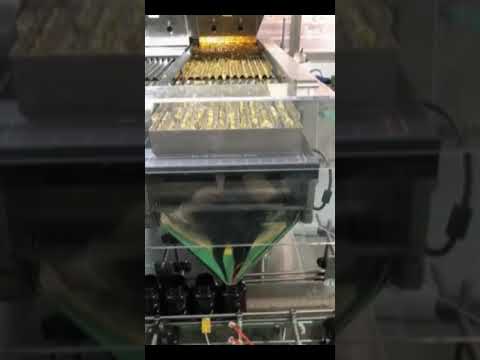

The high-speed tablet and capsule counting and filling machine combines 16-channel counting channels. Compact design with dual-track conveyor does enhance the capacity of output. The counter is equipped with advanced detecting system which can count and fill all standard and irregular shapes and all sizes of tablet, capsules, caplets, soft gels with 99,9% accuracy. Suitable for all standard and irregular shapes of tablets, capsules, etc. Stable operation and low noise. Bottles are moved smoothly with dual track conveyor to the high speed filling station with dual-nozzle. Easy to operate touchscreen, stainless steel version (SS304). - Specifications: error rate: < 0.1%; number of vibrating tracks: 16; capacity: max. 5200 pcs/min; counting range: 15-9999 pcs; product sizes: min. Ø 3mm, max. Ø 22mm; container: Ø(25-75)xH(0-240)mm; infeed hopper volume: 38l; compressed air: 0.15m³/6bar; power: 220V/3.8kW; machine dimensions: L1800xW1550xH1750mm.
Bodpfxsv Nk Ifj Akpsdb

Please note that our new prices are often below the usual used prices. Please feel free to inquire and tell us your packaging task. - Usually 30-50 different new machines are available immediately from stock. In addition, we have very short delivery times from approx. 3 weeks for customized machines. Deviations from the sample photo are possible. - All machines are available with full warranty.
