Injection molding machine

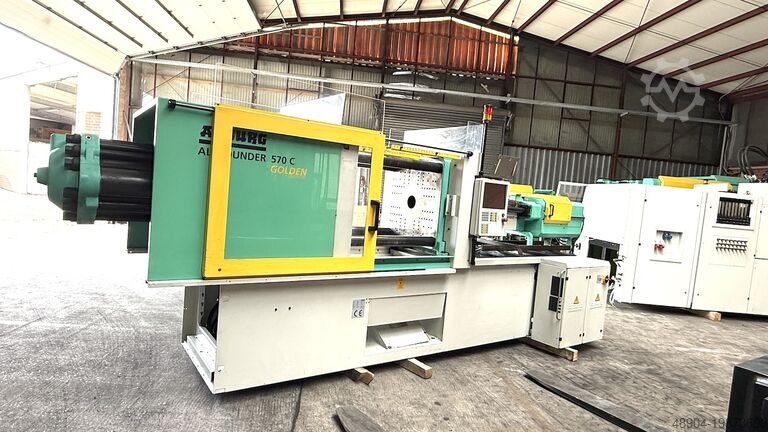

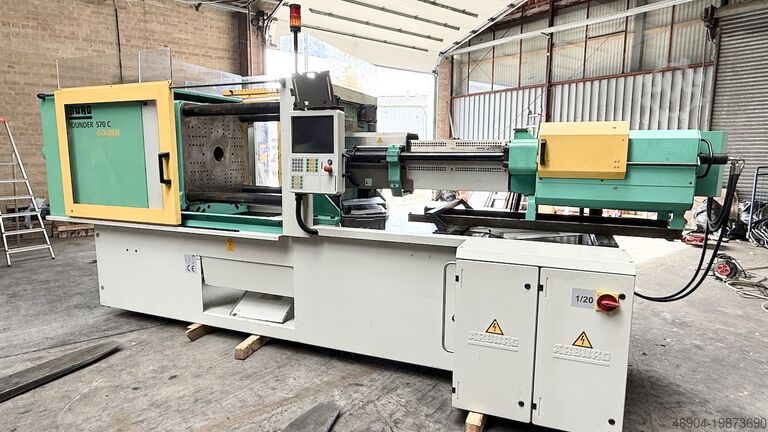

Arburg 570C 2000-800

Here we, as a dealer in injection moulding machines, are offering the following well-maintained used injection moulding machine:

Of course, we also purchase well-maintained injection moulding machines manufactured from 2010 onwards.
We have been a wholesaler of used injection moulding machines for over 25 years.

Current note – Tax notice and advantage for used machines:

As of 01.07.2025, used machines will also be eligible for a special depreciation of 30% annually for tax purposes.

Manufacturer: Arburg
Model: 520C 2000-800 GE
Serial number: 206432
Knjdjw Tt R Ispfx Aaajd
Year of manufacture: 2007
Operating hours: approx. 53,000
Control system: Selogica

Dimensions (L/W/H): 5.53 x 1.80 x 2.20 m
Weight: 7,450 kg
Functional condition: Fully operational
Condition: Very well-maintained – German origin

Extras:
- Thermoplastic cylinder complete, 50 mm, highly wear-resistant
- Screw in HC version instead of standard
- Selogica direct control
- Hydraulic system with 2 variable-displacement pumps
- Anniversary model GOLDEN EDITION
- Thermoplastic processing
- Open nozzle 50 mm
- Nozzle tip 50 mm extended
- Heating band for open nozzle
- Heating band for extended nozzle tip
- Central clamping platen set 570, center Ø 125 mm
- 2-piece air blast device with pressure regulator
- Air blast device connection 1
- Selector unit connection
- Core puller 1 for serial motion holding pressure via check valve
- Conveyor belt connection via 5-pin socket

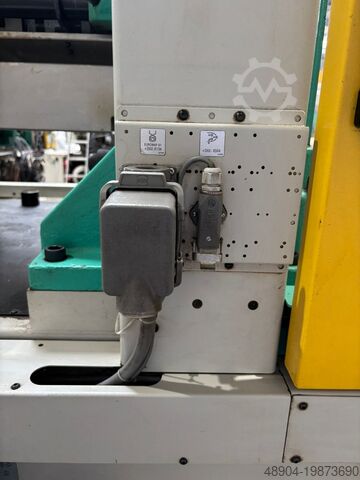

- Robot interface (per EUROMAP 67), 50-pin
- ARBURG host computer interface
- Additional socket distributor: 1x CEE, 1x Schuko
- Serial printer interface USB
- CompactFlash interface for data set storage
- Operation authorization with chip card per EUROMAP 65
- 1 additional heating control circuit for nozzle or adapter with socket
- Dosing unit interface

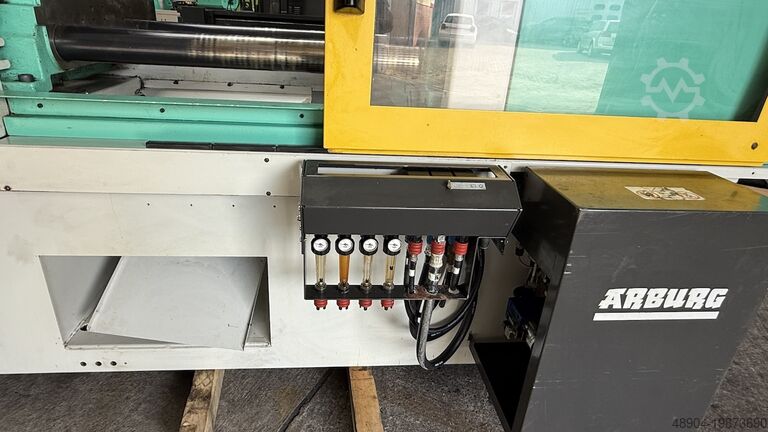

- Free cooling circuits, manually adjustable
- Machine-specific cooling circuits controlled
- Extended monitoring package
- Extended motion package
- Production control package
- Optimization / operator assistance package
- Quality assurance package
- Documentation package

Complete documentation included.

Injection unit:
Screw diameter: 50 mm
Shot weight: 359 g/PS
Injection pressure: 2000 bar
Shot volume: 392 cm³

Clamping unit:
Clamping force: 200 t / 2000 kN
Tie bar spacing: 570 x 570 mm
Mounting plates: 795 x 795 mm
Mould installation height: 300 mm
Max. platen distance: 950 mm
Opening stroke: 650 mm
Ejector stroke / force: 225 mm / 66 kN
Clamping unit: hydraulic

Motor power: 22 kW
Heating power: 19.9 kW / 8 heating zones
Total connected load: 45 kW

The machine is available for immediate delivery at our warehouse in Hannover, Germany and has been tested.

Warranty:
Warranty until initial commissioning.

Loading/shipping:
Free loading onto the buyer's truck or free delivery within Germany (freight charge applies)
Available from our warehouse in Hannover, Germany.

For your information regarding our machines and company:
- We sell only our own machines purchased from ongoing production at our Hannover warehouse.
- All listed machines are inspected and tested prior to removal.
- We do NOT sell insolvency assets – we are NOT brokers handling third party property.
- All offered machines come from successful businesses where proper maintenance is standard practice.
- All machines offered are available for viewing at our warehouse.
