Climate cabinet 138 liters

CLIMATS EXCAL 1413-HA -40 bis 180°C

Climats
Type: EXCAL 1413-HA
Air-cooled climate control cabinet
EXCAL is equipped with a 15-inch capacitive multi-touch panel PC, SSD
memory, Windows 7 and 2 USB ports.
This means it is state-of-the-art.
Technical data:
Test room dimensions: width 550 mm x depth 500 mm x height 500 mm
Housing dimensions: width 820 mm x depth 1375 mm x height 1730 mm
Window 350 x 380
Volume: 138 liters
Flow-through installed in basic equipment
R1: 80 mm ∅
L1: 80 mm ∅
Data for temperature tests:
Temperature range: -40°C to +180°C
Temperature deviation over time ± 0.1 to ± 0.3 K
Temperature homogeneity in space ± 0.5 to ± 1.8 K
Temperature change rate
Heating 15 K/min
Cooling 10 K/min
Data for climate tests:
Temperature range + 10 to +90 °C
Humidity range 10 to 98 %r.h.
Data for operation:
3/N/Ph+T 400V±10% 50 Hz
Rated power 9.8 KVA
Refrigerant R-404A / R-23
Weight: 430 kg
Podpfx Aev Dt T Tebgjrd
For your safety as a buyer, the following information!
The following points are carried out in advance on the chambers we offer:
1. Functional check and replacement of necessary components
2. If necessary, new filling with legally compliant refrigerant
3. Leak test with certificate
4. After successful inspection, the chambers are subjected to a documented test run.
Condition: used

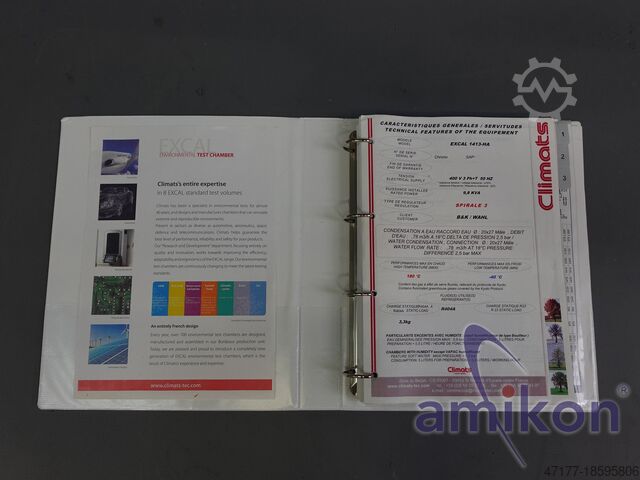

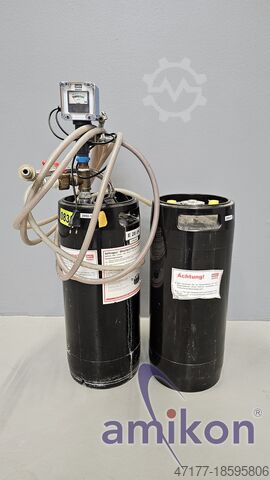

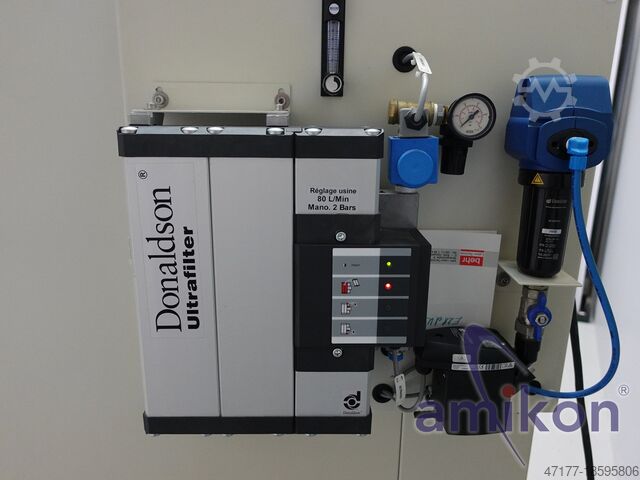

Scope of delivery: (See image)
(Changes and errors in the technical data, information is subject to change!)
We are happy to answer any further questions you may have over the phone.
