Aerial platform

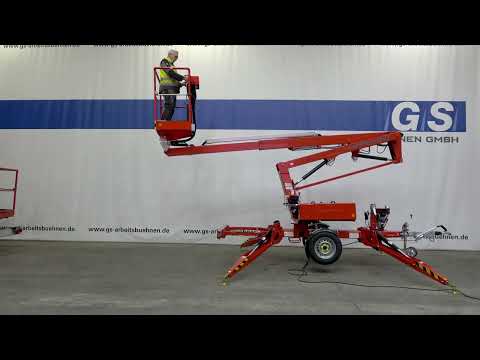

Niftylift 120 TAC MK1D

General information
Field of application: Construction

Drivetrain
Type of fuel: Electric

Weights
Empty weight: 1.500 kg

Functional
Mast: articulated arm
Lifting capacity: 200 kg
Lift height: 193 cm
Working height: 1.240 cm
CE mark: yes
Pedsv Tka Aepfx Aa Djrf

Condition
Technical condition: good
Visual appearance: good

Other information
Delivery terms: EXW
Transport dimensions (LxWxH): 4,59 x 1,56/1,10 x 1,93 m

Additional information
Please contact Christian Theißen for more information

Manufacturer: Niftylift
Model: 120TAC MK1D
Year of build: 2024
Condition: Used

Data:
Max. working height: 12,37 m
Platform height: 10,37 m
Max. reach: 6,10 m
Platform lifting capacity: 200 kg
Platform dimensions LxW: 1,10 x 0,67 m
Swivel range: 2x 190°
Total dimensions LxWxH: 4,59 x 1,56/1,10 x 1,93 m
Wheel pressure max.: 9,4 kN
Ground clearance: 0,21 m
Support width both sides: 3,54 m
Support length: 3,70 m
Support diagonal: 5,03 m
Ground pressure: 75 kg
Drive type: 240 V
Own weight: 1.500 kg
Special features: telescopic axis and The lighting strip can be removed, which changes it Device width to 1.10 m.
