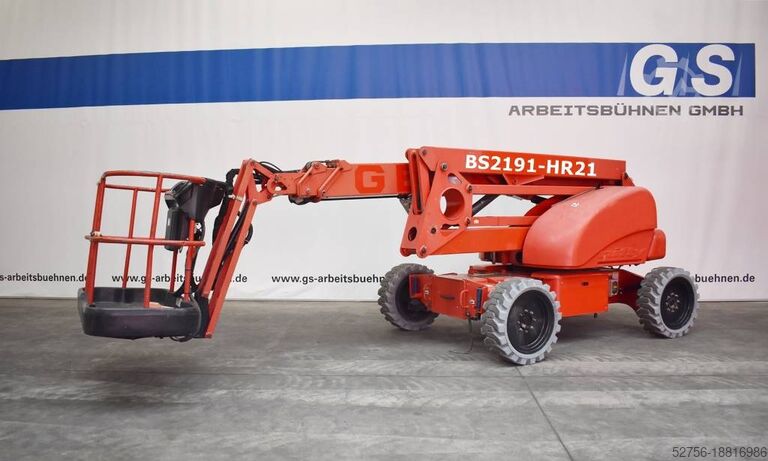

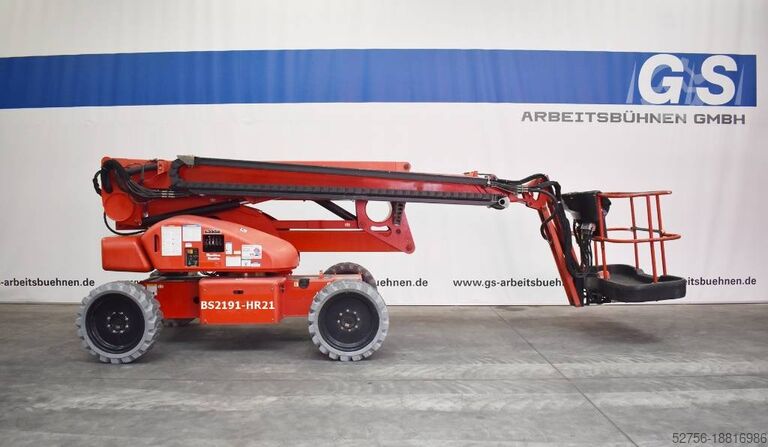

Articulated boom lift

Niftylift BS2191 - HR21

Drivetrain
Kjdpfov Ti T Iex Aftedw
Drive: Wheel

Weights
Empty weight: 6.512 kg

Functional
Mast: articulated arm
Lifting capacity: 225 kg
Working height: 2.080 cm
CE mark: yes

Condition
General condition: average
Technical condition: average
Visual appearance: average

Other information
Delivery terms: EXW
Max. horizontal reach: 1300 m
Transport dimensions (LxWxH): 5,3x2,29x2,15
Production country: UK

Additional information
Please contact Christian Theißen for more information

Manufacturer: Nifty Lift
Model: (BS2191) HR21 Hybrid
Year of build: 2013
Condition: Used

Data:
Max. working height: 20,81 m
Platform height: 18,81 m
Max. reach: 13,02 m
Drive type: Hybrid
Total dimensions LxWxH: 6,50 x 2,29 x 2,15 m
Length of transport position: 5,30 m
Height transport position: 2,15 m
Platform dimensions LxW: 1,80 x 0,86 m
Max. basket load: 225 kg
Swivel range: 355°
Overhang: 0,46 m
Movable up to working height: 20,80 m
Max. Pitch angle: 40 %
Wheel pressure (Support pressure): 39,28 kN
Ground clearance: 0,16 m
Own weight: 6.512 kg

Special features: Rotatable work basket, basket arm/vertical rotation angle 150°, all-wheel drive, differential lock, pendulum axle, white tires, integrated soot filter.
