Forklift

TICAB Multifunctional Loader / Polish Manufact

TI-CAR universal loader 225
The Polish company TICAB offers its own equipment for patching and road maintenance.
OUR ADVANTAGES:
- we are a manufacturer,
- our equipment operates in 57 countries around the world
- availability of finished products in stock,
- fast execution of individual orders,
- production capacity of 50 units per month,
- own engineering and design bureau - 12 engineers
- 15 years of experience in mechanical engineering, we have been working since 2009

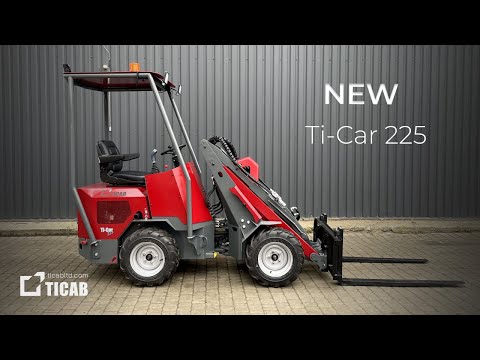

We offer the TI-CAR 125/225 forklift model as a universal working machine. The stable boom allows you to easily and safely lift loads with pallet forks. The adjustable steering wheel and comfortable seat suspension reduce fatigue from travelling. The dual-pedal steering system allows you to control the movement with amazing precision, even with demanding attachments and difficult terrain.

The TI-CAR is an effective tool for a variety of jobs in construction, agriculture, municipal services, with alternating loading into the body, snow removal, soil moving, transporting cargo, levelling the surface.

Technical characteristics:
Engine - Kubota (Japan), model - 1105; cylinders - 3,
or Yanmar (Japan), model 3TNM72

Engine power - 18 kW/25 k/s,
Cylinder capacity (cm³): 784-1120

Cooling system - liquid;

Hydraulics - HANSA (Italy),
Battery (V-Ah): 12-65
Generator (A): 40
Maximum torque (Nm): 72-77,6
Operating speed of the engine, rpm - 3000
The maximum engine speed without load is 3600 rpm;
Maximum lifting capacity to a height of 50 cm, kg-800-90
Tipping load with a straight frame, kg-480-780
Tipping load with a bent frame, kg-350-500
Boom lifting time, sec-2.8
Boom lowering time, sec-2.1
Loader weight, kg 1000-2550
Maximum lifting height, mm -2100-2860
Boom self-levelling - for model 225

Operating volumes:
Cooling system, (l): 3,1
Engine oil, (l): 5,11
Fuel type - diesel (fuel tank - 18 l)
Hydraulic tank (l): 44
Total capacity of the hydraulic system (l): 48.

Driving characteristics:

Travel speed (km/h)-0-13,

Breaking angle-56°,

Turning radius in place-1.63 m

Boom lift with tipping bucket 210 cm.
Wheelbase:
Outer wheel diameter (inch) - 23’
Inner diameter of the disc (inch) - 12’
Tyre width (inch) - 8.5’

The cost of the forklift* is as follows
Ti-Car 125 - 20450 € with PDS
Ti-Car 225 - 22450 € including VAT

*All prices are calculated in UAH at the NBU exchange rate on the day of signing the contract


Attachments:

- Cylindrical sweeper -4800 €.
- Brush with a garbage hopper with self-unloading function - 5500 €

- Bucket for transporting cargo - 650 €;

- Fork for stacking - 650 €;
Lodpjvprpkefx Akrsrk

- Blade for snow removal - 1200 €;

- Silo fork - 1300 €.
- Jaw bucket -670 €.
