Chiller

Carrier Carrier Chiller 30RBP-430-0095-PE

Carrier Chiller 30RBP-430-0095-PE (AquaSnap Series)

Type: Air-Cooled Liquid Chiller
Model: 30RBP-430-0095-PE
Variant: 30RBM/RBP

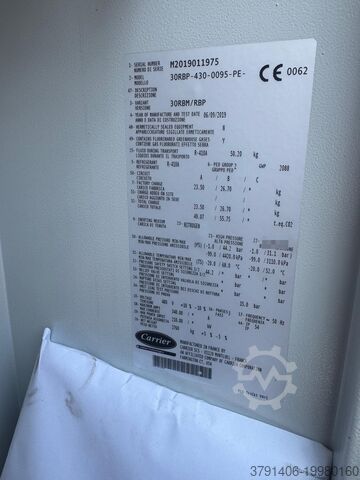

Serial Number: M2019011975
Year of Manufacture & Test: 06/2019
Manufacturer: Carrier SCS, Montluel, France (United Technologies, Carrier Corporation, USA)

Technical Specifications:
Nominal Cooling Capacity: 430 kW
Refrigerant: R-410A
Circuit A: 23.50 kg / Circuit B: 26.70 kg
Total Charge: 50.2 kg
GWP: 2088
Compressors: Danfoss Scroll SH240A4ACE (thermally protected)
Power Supply: 400 V / 3 Ph / 50 Hz
Maximum Current Draw: 340 A
Maximum Starting Current: 210 A
Power Input: 210 kW
Operating Temperature Range: –20 °C to +52 °C
Net Weight: 2760 kg
Protection Rating: IP54

Pressure Data
Refrigerant: R-410A
Allowable Pressure (Min/Max):
High side (PS): –1.0 / 44.2 bar (–99.0 / 4420.0 kPa)
Low side (PS): –1.0 / 31.1 bar (–99.0 / 3110.0 kPa)
Safety Relief Valve Setting: 42 bar
Rupture Disc Setting: 45 bar
Test Pressure: 15.0 bar (unit leak test)

Additional Information:

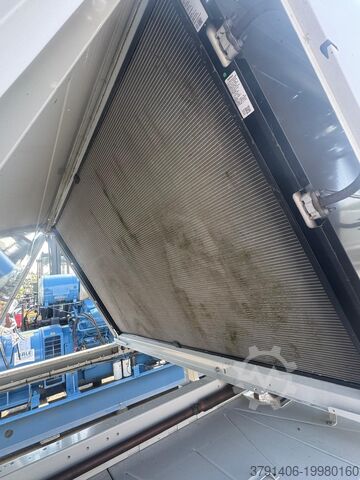

Air-cooled design with axial fans and integrated condensers.
Electrical control panel with Carrier management system.
Hermetically sealed system, original Carrier service log included.
Serviced and maintained by official Carrier service centre.
