Hot wash Granulation / cleaning complete

European 600-HW

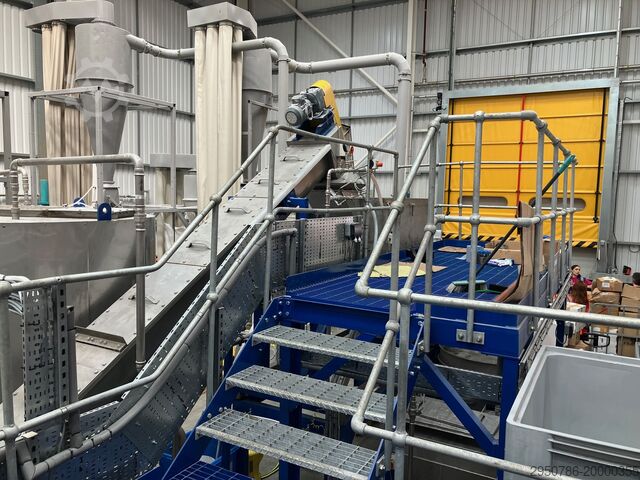

A very rare opportunity to acquire a 3 year old 600 kgs per hour, complete hot wash recycling and cleaning line suitable for a range of rigid polymers to be size reduced and cleaned. Machinery has very low hours of operation, and is only available as a result of re-organisation of the companies operations. Materials are firstly delivered via a picking belt and metal detection tunnel, from a cage tipping device to a large Hot washing granulator. Size reduced materials then drop onto a vibrating sieve ,to separate the majority of dirty water, and then materials transfer to an inclined Archimedes screw delivering materials to a horizontal high speed centrifugal cleaner. After this cleaning the materials enter a large diameter vertical drying centrifuge with the finished materials then conveyed to a ZigZag air separator, before being blown to the cyclone over a double bagging tower. The fines separated at this stage are blown to a separate cyclone over a single bagging tower for fines and fibres etc removed by the ZigZag tower.
The entire line can be seen in operation in the UK and by special arrangement could be trialed with potential buyers materials.
Used water caould be recycled through the system, but this is dependent upon the type of contamination to be removed.
The entire line is of European manufacture, and all materials exposed to water are manufactured in Stainless Steel.
Fpjdpfx Adjxcnxdj Eod
Decommissioning, Transport, Installation and commissioning together with operator training can also be offered internationally to a buyer of the equipment.
