Log transport

Fliegl SDS 380 Holzrungenaufbau

Customized transport solution

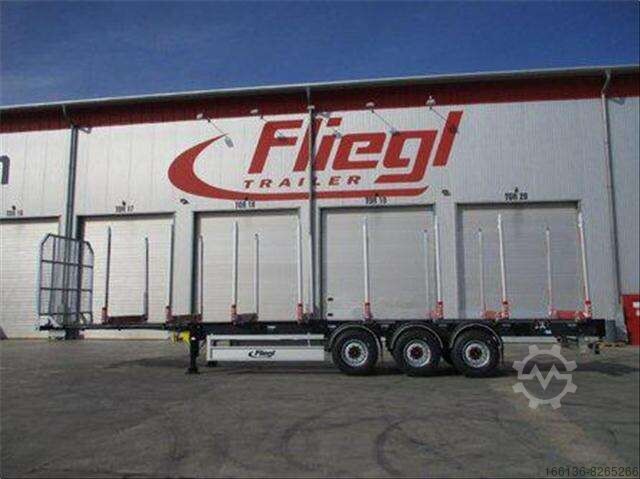

Configure your Fliegl vehicle according to your requirements. The vehicle shown is an example. Production and equipment are tailored to individual customer needs.

Further information
Chassis, semi-trailer, forwarding company
Steel welded construction in reinforced design, only 2 longitudinal beams as double T-beams with steel/diamond plate between the longitudinal beams, kingpin plate with 2 interchangeable kingpins. Mudguard for taillights.
1 steel storage box, recessed between longitudinal beams
8 pairs of lashing eyes screwed or welded to the frame, as per manufacturer's choice
24 tons, 2-speed support winch, single-sided operation, with straight lower part, without thrust compensation
2 support wedges with holder
Aluminum side underrun protection
Galvanized steel rear underrun protection
Semi-shell mudguards
with anti-splash flaps according to EG
1 spare wheel holder for 1 spare wheel, with wheel fastening kit
8 pieces of timber rack brackets, as per manufacturer's choice, screwed to the frame with 2 extendable timber racks each, from 1800 to 2800 mm, 7 tons per pair
Axles + Suspension
SAF disc brake axles with 430 mm disc diameter
Air suspension with lifting and lowering valve, safety cable on the axles
1st axle automatic lift axle, including forced lowering and starting assist, activated by 3x braking (starting assist is functional up to an axle load exceeding 30% and up to a speed of max. 25 km/h)
Offset axle spacing mm (combined transport) up to 44 tons total weight
Wheels and tires
385 / 65 R 22.5
as per manufacturer's choice
Steel rims, factory silver
Braking system
2-line pneumatic braking system
Spring-loaded parking brake
Axle load detection via EBS-Canbus signal, for display on the screen in the driver's cab, the truck must be correspondingly pre-equipped, no truck installation (no calibrated scale)
2 non-interchangeable coupling heads at the front, without connection cable
EBS, electronic braking system with EBS socket at the front, without connection cable
Note: The trailer may only be pulled by towing vehicles that guarantee the effectiveness of ABS!
Lsdpfxji Rivwo Adhjrp
Electrical system
24 volts, multi-chamber lights, yellow LED lighting on the sides
2 white position lights at the front
2 white/red marker lights at the rear
2 x 7-pole and 1 x 15-pole non-interchangeable sockets at the front, without connection cable
Front panel/corner posts at the front
Steel/lattice front panel, approx. 2,300 mm high, screwed to the frame
Approval / Signs
Country of approval: Germany
Type approval according to EG 2007/46
prepared for single-row license plate holder
Contour marking with reflective tape according to ECE R 048, white on the sides and red at the rear
Paint
Frame DB 7350 Novagrau
Support feet black coated
Front panel hot-dip galvanized
Note: Archive images!
