Belt conveyor belt conveyor

Lippert GF 1290-650-500

Lippert belt conveyor GF 1290-650-500
RA1392
The Lippert conveyor belt is from 2001 and in good (used) condition. The belt conveyor has a SEW motor with MOVIMOT frequency inverter to control the speed. Lateral guides and/or light barriers can be installed on request at extra cost. Supports are not included in the delivery. These are optionally available on request.
The pictures of the conveyor system shown here were taken in a logistics center while still installed.
The conveyor belt was used as a folding belt. Folding device was removed during dismantling. On request, we can also supply this conveyor belt as a folding belt version.

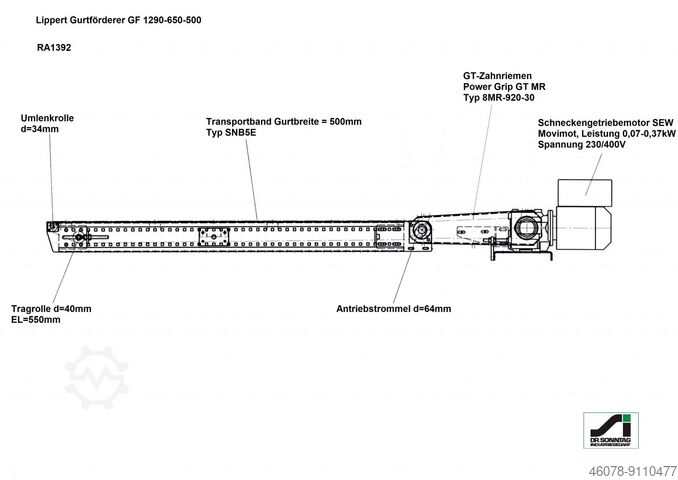

Technical data:
Conveying length (NL): 1290 mm
Frame width (NB): approx. 650 mm
belt width (GuB): 500 mm
height (BH): 105 mm
Support feet optionally available
Conveying speed (v m/s): adjustable up and down with frequency converter
Drive: SEW gear motor S37 DT71D4/MM03/BW1
Electrical data: 50Hz V380-500, kW 0.075 / 0.37 / S1
Deflection roller (UR): Ø = 34 mm
Drive drum (AT): Ø = 64 mm
Belt: Type SNB 5 E
Year of construction: 2001
Optionally available:
Supports
Side guides
Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg
