Цистерна камион за вакуум

MAN TGS 26.480 6x2 mit Kroll ADR Kombi und Simultan

++ RENT ++ BUY ++ RENT ++ BUY ++ RENT ++ BUY ++ RENT ++ BUY ++ RENT

Internal number: #345

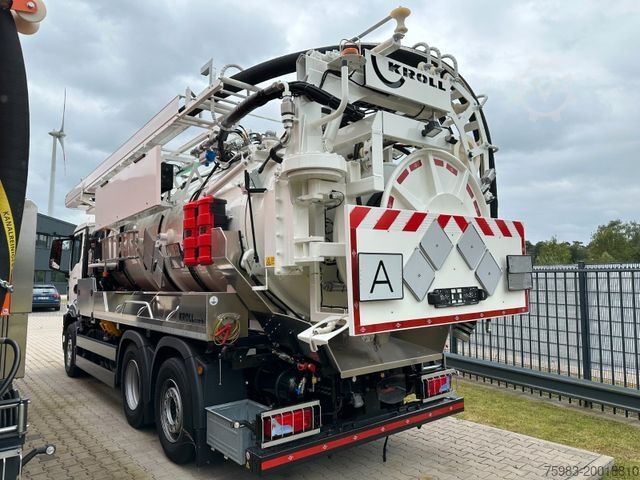

MAN TGS 26.480 6x2 -4 BL with combined high-pressure flushing and suction-pressure tank body ADR Type K 14.0 / 28 PE

Body KROLL Fahrzeugbau-Umwelttechnik Gmb
* HOSE STORAGE CASSETTE WITH SIMULTANEOUS TELESCOPIC BOOM DN 125
* Reach stop side 5,200 mm
* Tank material S355J2+N (St. 52.3)
* ADR suction/pressure tanker type K 14.0 / 28 PE
* Extension piston with 3 locking points
* (3,300 l water/10,600 l sludge, 5,500 l water/8,200 l sludge, 7,700 l water/6,000 l sludge)
* Suction from open waters possible "comfort version" via cassette boom with integrated filter
* Tanker equipment according to ADR - type class AT/FL L4BH
* DRAINING: by means of a pneumatically actuated piston
* MUDDING WATER DRAIN DN 80: for pushing back the dirty water via the boom into the sewer.
* Manhole DN500


MAN TGS 26.480 chassis
* 6x2 - 4BL
* TipMatic with OMSI
* 470PS/346KW
* EURO 6e
* Fuel capacity 400l
* Chassis color RAL 9010 pure white
* Color cab RAL 9010 pure white
* 2x LED rotating beacons on the cab
* Reversing camera
* Navigation
* Air conditioning

Vacuum system
* CVS VacuStar 1600 approx. 1,550cbm/h at 400bar
* Drive: flexible, via cardan shafts, V-belts and pneumatically switchable friction clutch from the auxiliary drive of the vehicle engine.
* approx. 20m HD hose DN 125
* HOSE STORAGE CASSETTE WITH SIMULTANEOUS TELESCOPIC BOOM DN 125
* Reach stop side 5,200 mm


High pressure system
* Uraca KD 718 approx. 315 l/min at 170 bar
* Drive : elastic, via cardan shafts, V-belt and pneumatically switchable friction clutch.
* approx. 240m HP hose DN 25
* Large HP hose reel for 240m 1? DN 25 180° swivel
* Equipped with 240m DN 25
* small HP hose reel for 80m ?? DN 13 hydraulic
* equipped with 80m DN13



Special features
* Hose storage cassette with telescopic boom DN 125
* Infinitely variable height adjustment of the suction hose hydraulically via roller guide carriage
* Hydraulic and telescopic extension arm for suction hose that can be swiveled through 180
* ADR version L4BH type class FL incl. EX/II, EX/III and AT
* Spray gun
* LED rotating beacons
* Removable and swiveling halogen work lights
* LED ambient lighting
* Remote control of work functions via CAN-BUS technology
* Radio remote control with 14 functions
* Hand-washing device (warm)
* Large cabinet at the rear left, e.g. for a sliding camera
* Rear view camera with 7? color monitor incl. day/night switching
* Sound insulation cladding in front of pump compartment
* WATER MANAGEMENT WARNING SYSTEM: with buzzer in the main control cabinet and automatic pump shutdown.
Dsdpfxexc Sx Ie Afzjcb
* Residual water drainage: pneumatic for all water-bearing parts with connection to the truck compressed air system.
* Large equipment box
* Tool box
* Holder for traffic cone
* vice
* ladder
* Large advertising boards on the right and left
* Manhole DN500


Technical data* GGW 26.000KG
* Empty weight 18,530 KG
* Length 9,280mm
* Height 3,740mm
* Width 2,550mm
* Wheelbase 3,900mm


For more detailed information and/or pictures please contact us directly. You will find a large selection of other vehicles to BUY or RENT under:
Subject to alterations, prior sale and errors excepted. The buyer is obliged to independently check the condition and equipment of the goods. The sale is subject exclusively to our general terms and conditions and to the exclusion of any liability.
