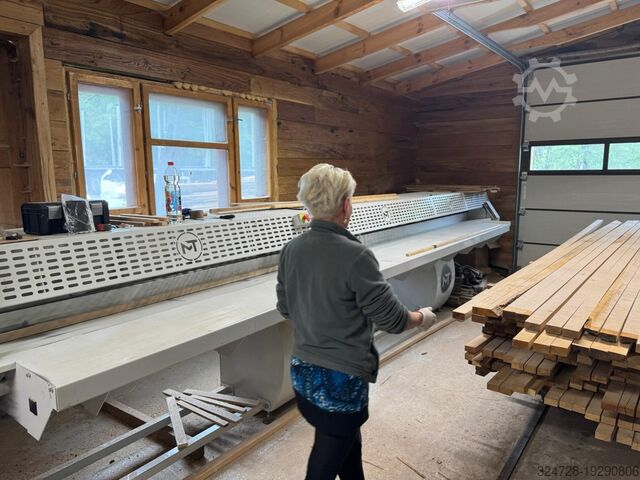

Metal Technika OWD 1600

TECHNICAL PARAMETERS:
- cutting width 250 mm
- cutting height 120 mm

- Capacity up to 8,150 mb /8 h
- sorting table with 4 punches
- Electronics Controller with color touch screen "MITSHUBISHI"
- Functions - full optimization of 30 dimensions in two quality classes,
Itjdowp Az Aspfx Abnjp
- creating cutting programs for different customers,
- cutting at the place marked with a fluorescent pencil,
- cutting the margin (beginning and end of the input material)
- cutting in packages (several elements at once)
- meter counters, total, shift, operator, monthly,
- cutting accuracy ±0.2 mm
- 5.5 KW motor (saw Ø500 – 140z)
- Input material width 12 - 250 mm max. width/height (250 / 50 mm)
- Material height input 12 - 120 mm max. height/width (120 / 130 mm)
- Input material length up to 4,200 mm
- Lubrication Oil central lubrication system

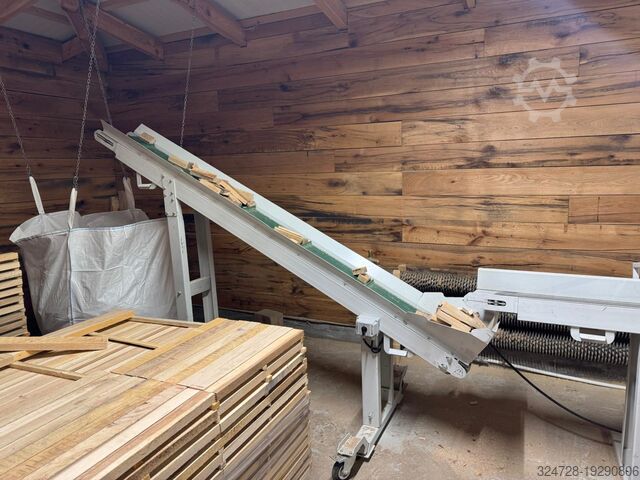

- Output automation Connection for inclined conveyor and sorting table
