PAVIC PAVIC PRSH27 Plateau Rungen Schnellwechselsystem

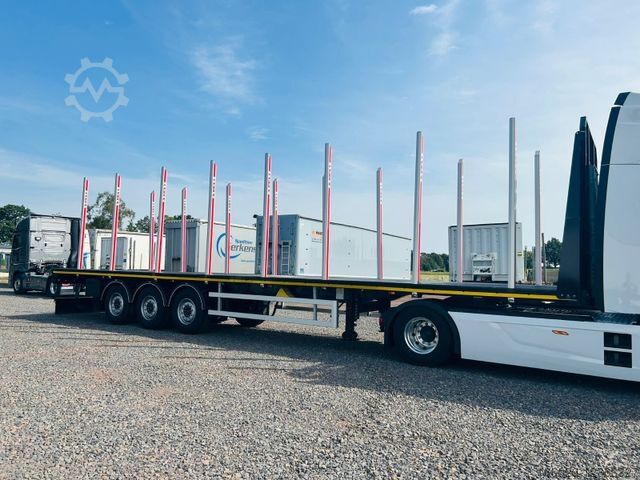

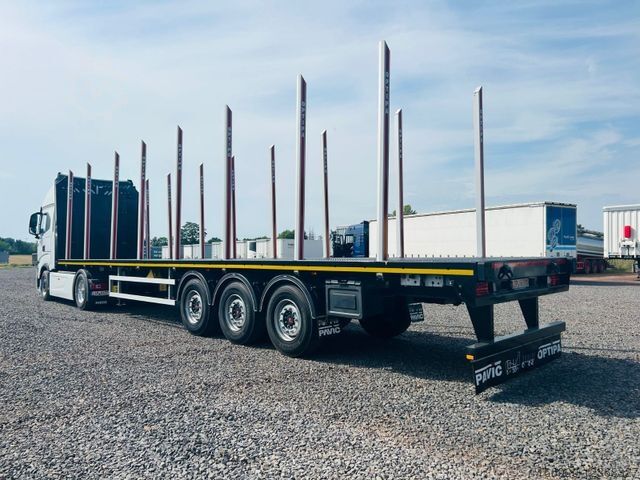

PAVIC OptiPa PRSH 27 platform semi-trailer for transporting timber and long materials.

* Chassis length approx. 13510 mm (head frame-head frame)
* Chassis width approx. 2540 mm (outer frame-outer frame)
* Sturdy steel bulkhead approx. 2,500 mm high
* 16x OptiPa A7 one-piece aluminum stanchions
* Steel floor 4/6 mm tear plate cover
* Technically permissible total weight 43,000 kg
* Unloaded ride height approx. 1400 mm with saddle height 1200 mm
* Max. fifth wheel load approx. 16000 kg
* 2" kingpin in accordance with SAE standard, interchangeable from below
* 16x Optipa quick-release fastener system embedded in the outer frame and 8x as storage for stanchions distributed centrally over the entire length
* 3x 9t axle with large disc brake and air suspension unit for 9t load capacity each Total lift approx. 180 mm
Hsdpen Hrriefx Ag Hspa

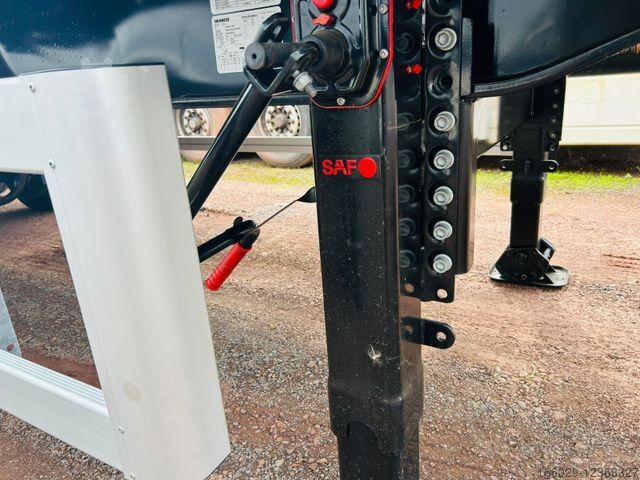

* Lifting and lowering device with rotary slide valve
* Axle lift first axle, automatic function, with starting aid
* Smartboard/TIM/Infocenter

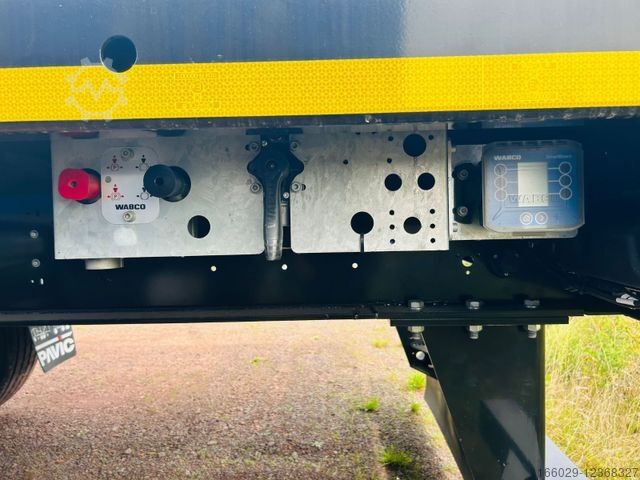

* EBS brake system make Knorr or Wabco of our choice with Roll Stability program

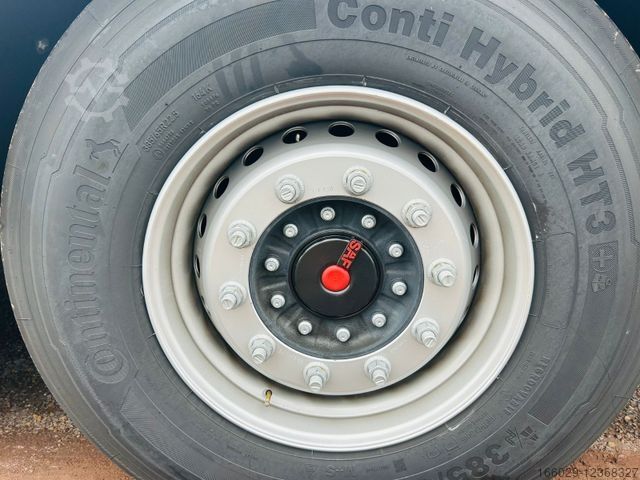

* Brand tires 385/65 R 22.5
* LED work lights
* LED lighting system

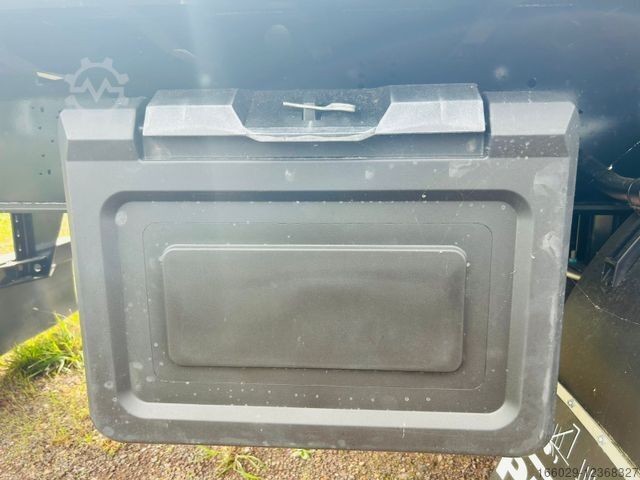

* 2x toolbox
* CDP with zinc phosphating plus powder, maximum corrosion protection (only if powder paint is available)

For further information please do not hesitate to contact us
