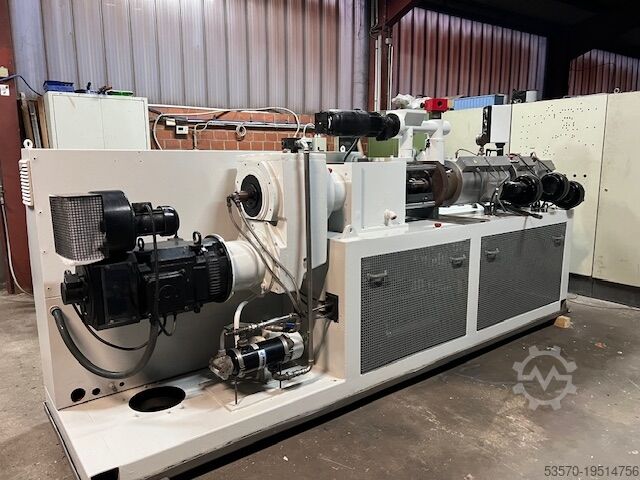

Twin Screw Extruder, conical

Reifenhäuser BT 1000-2-63K

Twin-screw extruder, second-hand
Manufacturer: Reifenhäuser
Type: BT 1000-2-63 K
Year of construction: 1994
Machine no.: 32061
Operating hours: 32,303 hours
Screw geometry: conical for PVC-hard profiles
Isdpfx Adewxvpfoistb
Screw diameter: 63 - 121 mm
Screw length: 1300 mm
Screw speed: max. approx. 32 1/min.
Nominal torque from gearbox: 1000 daNm
Dynamic load rating of the back pressure bearing: 103600 daN
Motor power: 43.0 kW,
Drive motor: Baumüller DC motor
Barrel heating/cooling zones: 4/3 (air cooling with fan)
Adapter heating zones: 1
Tool heating zones: 5

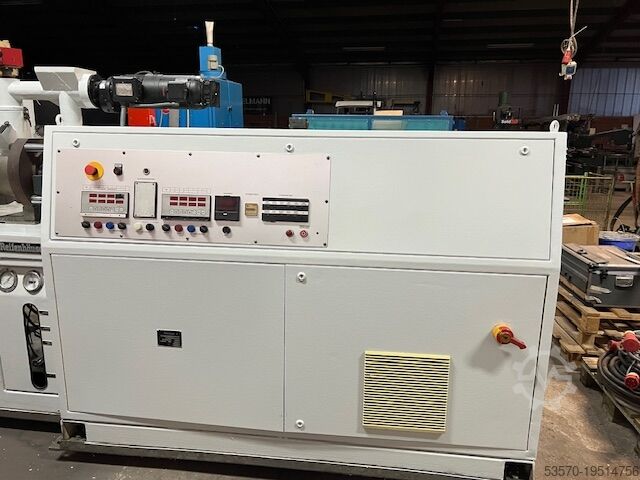

Temperature control: digital temperature controller (2 x PSG Multipact 88)
Max. permissible melt pressure: 500 bar
Output: approx. 150 - 200 kg/h for rigid PVC profiles
Accessories: Dosing device and material hopper
Extrusion height: 1150 mm
Dimensions: 4250 x 1200 x 1750 mm without hopper (LxWxH)
Weight: approx. 3000 kg
Condition: The machine came directly from production and
was cleaned by us, repainted (RAL 7035, light gray)
and checked for function.
