Wood splitter

SCHORR 22t HS-22P PRO Zapfwelle Spalter stehend

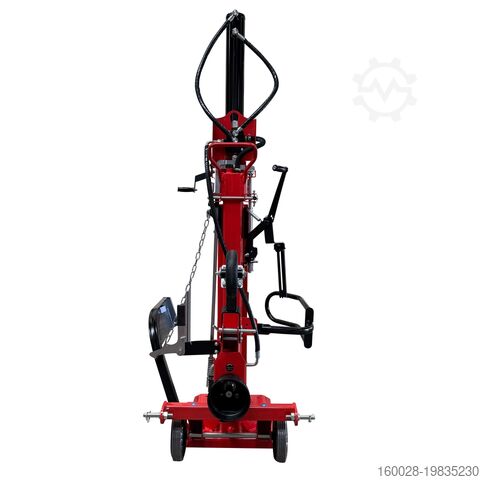

SCHORR Log Splitter 22t HS-22P PRO

With a splitting force of 22 tonnes, the 22t HS-22P PRO handles even the toughest wood and thick logs effortlessly. Its robust construction (290 kg net weight), low-wear hydraulic system, and high-strength steel frame ensure long service life, maximum stability, and reliable performance – even during continuous operation.

PTO Drive – Direct Connection to Tractor

Thanks to its PTO (power take-off) drive, the HS-22P can be directly connected to the tractor. This gives it outstanding mobility and independence from external power sources – ideal for use in the forest, on meadows, or around the farm. The splitter operates with stable power transmission and a powerful hydraulic pump, enabling fast splitting cycles.

Durable Construction – Built for Heavy-Duty Use

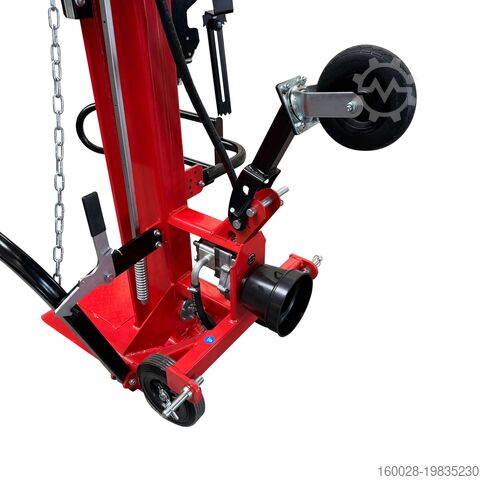

The design features high-strength steel components and a stable splitting wedge guide. Solid support feet provide a firm base, while large transport wheels allow for easy relocation – even on uneven terrain.

Splitting Length up to 110 cm
Long logs can be processed with ease. The heavy-duty splitting blade made from tool steel ensures a precise split line and minimal wear.

Integrated Log Lifter – Enhanced Comfort & Safety
The log lifter allows heavy logs to be raised effortlessly and also serves as a protective guard – greatly simplifying everyday work.

Two Return Modes & Speed Levels

-- Automatic return: The splitting wedge automatically returns to the preset position – ideal for rapid work cycles.
-- Manual return: For precise splitting, especially when processing irregular wood.
Additionally, a fast mode for approach and a slow, high-power mode for splitting are available.

Practical Features for Daily Use

-- Lowerable cylinder (down to 1.99 m) for easy transport and space-saving storage
-- Two-hand safety operation for maximum protection
-- Three-point hitch (Cat. I & II) for convenient tractor transport

Technical Data

-- Manufacturer: SCHORR
-- Model: HS-22P
-- Splitting force: 30 t
-- Weight: 370 kg
-- Drive: PTO (540 rpm)

Dimensions:
-- Length: 1300 mm
Lsdpfxow Smm Ts Aaasai
-- Width: 1450 mm
-- Height: 2470 mm (lowered 1990 mm)
-- Hydraulic cylinder: Ø 11.5 cm
-- Piston rod: Ø 6 cm
-- Splitting wedge: 22 cm
-- Splitting diameter: max. 35 cm / min. 8 cm
-- Wedge-to-ground gap: 20 cm

Speed:
-- PTO: Forward 8.0 s / Return 9.0 s

Your Advantages at a Glance

-- Ready to use immediately – no long waiting times
-- Solid construction – 290 kg net weight for maximum stability
-- Flexible operation with tractor
-- Convenient log lifter for heavy timber
-- Spare parts always available
-- Expert service & advice

Whether delivery or collection in 48465 Schüttorf – we provide the right solution.
