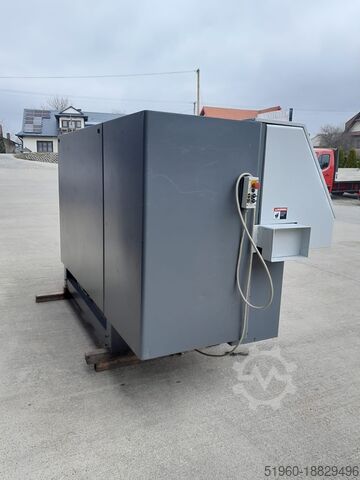

Four Side Planer

Strugarka czterostronna CASADEI P230

Technical data:

Max planing width: 230 mm
Max planing height: 130 mm
Spindle diameter: 40 mm
Number of spindles: 5
1, 4, 5 spindle on a separate engine
2, 3 spindle on one engine
Number of upper steel pulling rollers: 4
Number of upper rubber pulling rollers: 3
Diameter of the extraction nozzle: 100, 110, 140 mm
Smooth feed adjustment:
Hodpfsv Tyg Eox Adlonp
Feed on cardans
Work table lubrication pump
1 smooth roller in the table top
Pressure: 6 atm.
Electric lifting of the body
Power supply: 400 V
Total power: 35 kW

Overall dimensions:

Length: 4860 mm
Width: 1640 mm
Height: 1670 mm
