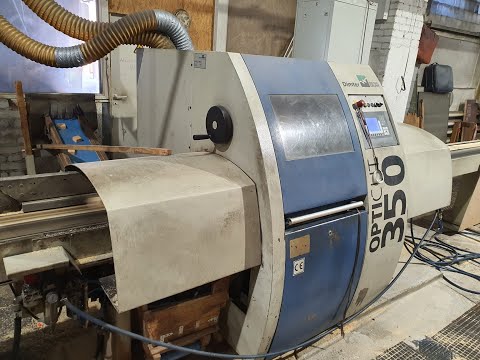

### Weinig Dimter OptiCut 350 – Optimizing cross-cut saw

The Weinig Dimter OptiCut 350 is a high-performance Optimizing cross-cut saw widely used in the woodworking industry for precise cut-to-size operations with simultaneous material optimization. This machine ensures high-speed, accurate cutting, maximizing raw material efficiency while minimizing waste.

Year of manufacture: 2005
Technical condition: Very good

---

Technical Specifications:

1. Input material length:
- Maximum length: 6,200 mm
- Minimum length: 500 mm

2. Material width:
- Maximum width: 300 mm
Gjdpfx Abev Dm U Rexstt
- Minimum width: 40 mm

3. Material thickness:
- Maximum thickness: 100 mm
- Minimum thickness: 15 mm

4. Cutting speed:
- Maximum cutting speed: 250-350 cuts per minute
- Feed speed: up to 200 m/min

5. Cutting tool:
- Saw blade rotational speed: approx. 3,000 RPM

6. Control system:
- CNC control with an advanced PLC system for precise cutting process management.
- Optimization data input to maximize material utilization and minimize waste.
- Touchscreen interface for easy machine operation and parameter input.

7. Optimization system:
- Equipped with a defect recognition system (manual or automatic defect marking) to eliminate defective sections during cutting.
- Length optimization function based on production requirements (e.g., minimizing waste, maximizing output of specific lengths).

8. Material feeding system:
- Automatic feeding system for seamless material input.
- Integrated conveyors and transport systems for efficient material flow through the machine.

9. Waste management:
- Automated waste removal and sorting system to separate defective wood fragments.
- Number of ejectors: 9 unit

10. Cutting accuracy:
- High precision cutting with an accuracy of ± 0.5 mm, depending on wood parameters and machine settings.

11. Power supply:
- Standard power supply: 400 V, 50 Hz

---

### Additional Features:

- Automatic defect marking: The operator can mark defects on the wood (e.g., knots, cracks), and the machine automatically optimizes the cutting process to avoid these sections.
- Safety features: Equipped with modern safety systems, including lock sensors and protective covers.

---

Applications:

The Weinig Dimter OptiCut 350 is ideal for woodworking industries, especially in facilities producing structural wooden components, furniture parts, and solid wood processing plants. Thanks to its optimization capabilities, this machine significantly increases productivity and efficiency while reducing material waste.
