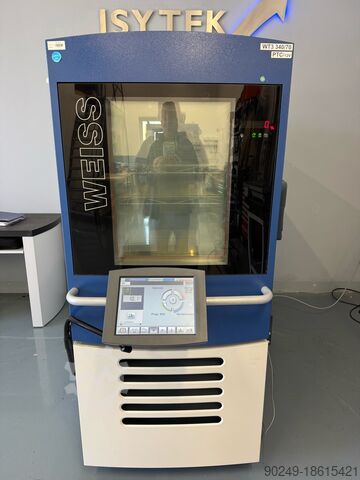

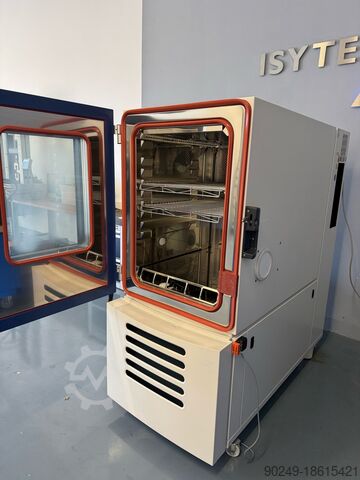

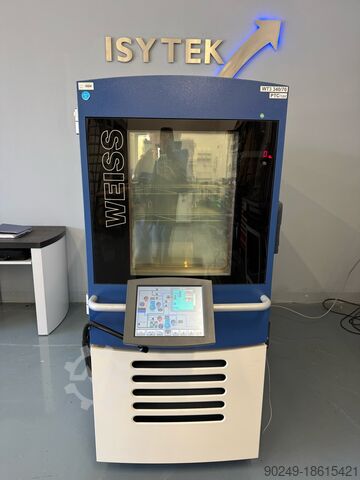

White temperature cabinet -72°C - +180°C

Weiss Temperaturschrank -72°C - +180°C WT3-340/70 335 Liter Luftgekühlt

Type: Weiss WT3-340/70
Very good condition

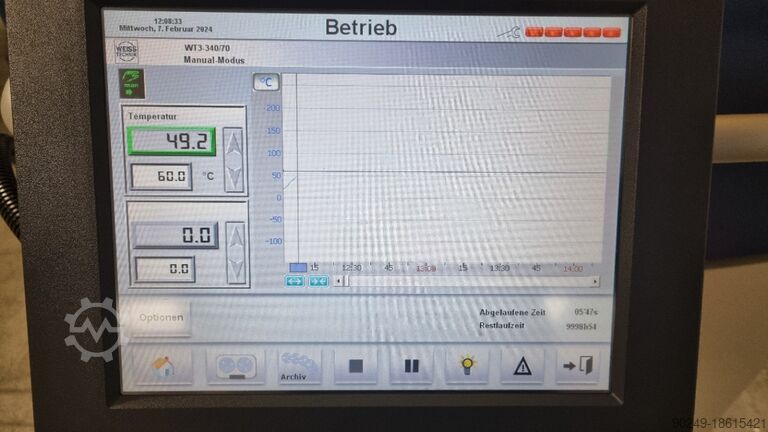

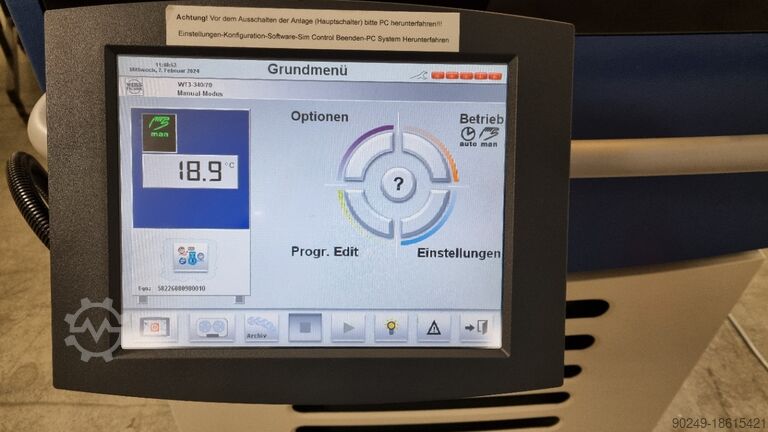

Weiss temperature cabinet with S!MCON / 32 control, air-cooled
(refrigerant (R-404A) (can be converted to R452A on request)

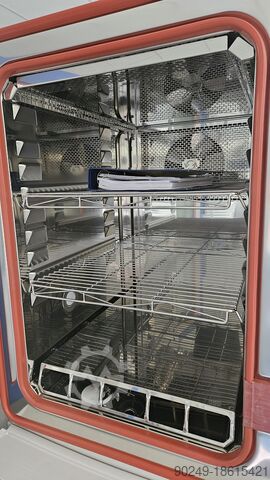

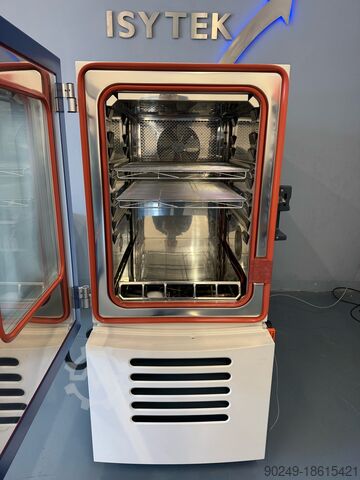

Test room capacity: approx. 335 liters
Test room dimensions: height 750 mm, width 580 mm, depth 765 mm
External dimensions: height 1775 mm, width 870 mm, depth 1600 mm
Data for operation:
Test room lighting halogen bulb 24V, 50W
Nominal voltage: 3/N / PE AC 400 V ± 10% 50 Hz
Nominal current: 12.5 A Nominal power 4.1 kW
Fuse provided by customer 16 A slow-blow
Sound pressure level approx.
measured at a distance of 1 m from the front. 1m height 58 dB(A)
Data for temperature tests:
Temperature range: -72 to +180 °C
Temperature deviation over time in the middle of the usable space: ± 0.1 to ± 0.5 K
Temperature deviation spatially: ± 0.5 to ± 1.5 K
Temperature gradient
(according to IEC 60068-3-5): 1 to 4 K
Temperature change rate (according to IEC 60068-3-5)
Heating: 3.0 K/min
Cooling: 3.0 K/min
Heat compensation max. 1500 W
Refrigerant: R-404A / R-23
Bjdpfx Absv Edd Sskjcw
Weight: 585 kg
For your safety as a buyer, the following information! The following points are carried out in advance on the chambers we offer:
1. Functional check and replacement of necessary components
2. If necessary, new filling with legally compliant refrigerant
3. Leak test with certificate
4. After successful inspection, the chambers are subjected to a documented test run with calibrated measuring devices.
Condition: used / used Very good condition
