Coordinate measuring machine

Zeiss PRISMO 10 / REVO-5 Achsen

We are offering for sale our test and demonstration machine from our Solution Center. Additional machines are available. Please feel free to contact us.

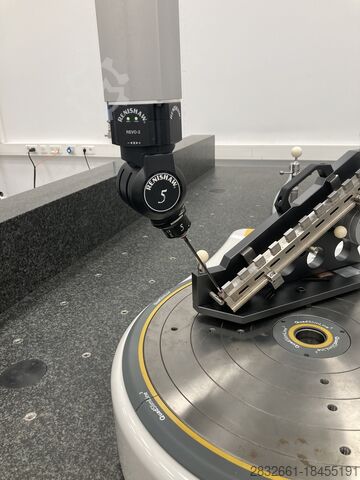

Zeiss | PRISMO 10 with REVO 5-axis measuring system (Please note: offer does not include rotary table!)

Retrofitted coordinate measuring machine featuring the latest Renishaw 5-axis technology!

We purchased the machine from a used equipment dealer in 2017 and subsequently upgraded it with the complete Renishaw technology package. The machine has consistently received all necessary updates and is up to date with the latest technological standards. It was originally manufactured in 2000.

Measuring range XYZ: 1600 x 3000 x 1000 mm
Measurement uncertainty MPE (E0): 3.2 + L/300 in µm

Equipment features:
- Renishaw UCC S5 controller, SPA3 servo amplifier, MCU5-2 joystick
- Active temperature compensation with workpiece sensor
- Renishaw REVO 5-axis measuring system for touch-trigger and scanning, including RSP2, 1x RSH175, 2x RSH250, and RSP3-3 Kit (3xSH), including all probe changers
- Renishaw Modus measuring software (latest version) with CAD import (STEP), including one year of software maintenance
- PC system running Windows 11 with 2 x 27" TFT monitors (NEW), adjustable-height desk included
- Control cabinet featuring up-to-date safety technology

We are happy to tailor the specifications to your requirements. Please note: offer does not include rotary table!

Klodpfx Adevxhy Doiol
Optional service package available upon request:
Delivery to curbside | Commissioning | Inspection | Accuracy certification according to DIN ISO 10360 | Software training in Pliezhausen or Eitorf | Additional options and configurations available upon request.
