Injection Moulding Machine
Billion Vulcan H27400-2500T

Name: Billion Vulcan H27400-2500T
Brand: Billion
Availability: InStock

година на производство

2009

Состојба

Користено

Локација

Германија

Injection Moulding Machine Billion Vulcan H27400-2500T

Прикажи карта

Податоци за машината

Ознака на машината:: Injection Moulding Machine

произведувач:: Billion

Модел:: Vulcan H27400-2500T

година на производство:: 2009

Состојба:: подготвен за работа (половен)

Цена и локација

Локација:: Deutschland

Повикајте

Детали за понудата

ID на огласот:: A20225545

Референтен број:: INNO30022

ажурирање:: последно на 06.10.2025

Опис

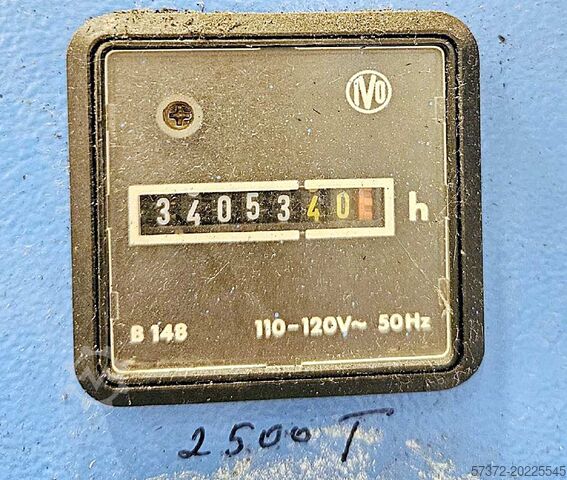

A hydraulic two-plate injection molding machine Billion (complete molding line) for large parts, including robotic automation, dosing unit, and hopper, is available. Clamping force: 2500t (25000kN), total power: 743kW, max. hydraulic pressure: 210bar, max. mold weight: 72700kg, ejector stroke min./max.: 830mm/1900mm, max. mold thickness: 652mm, nozzle tip material: 42CrMo, max. nozzle tip operating pressure: 900MPa, hydraulic oil type: ISO VG 46, hydraulic oil tank capacity: 2500L, max. pump pressure: 210bar, screw diameter: 145mm, injection pressure: 1850bar, injection volume: 8400cm³, injection speed: 160mm/s, plasticizing capacity: 1150g/s, mold opening/closing speed: 450mm/500mm/s. Machine dimensions X/Y/Z: approx. 14550mm/3800mm/4100mm, transport weight: approx. 170t, control: Billion Dixit 2, operating hours: 34054h. The motor of the screw cylinder and two small valves on the Z-axis of the robot need to be replaced. Documentation available. An on-site inspection is possible.
