Мобилен багер

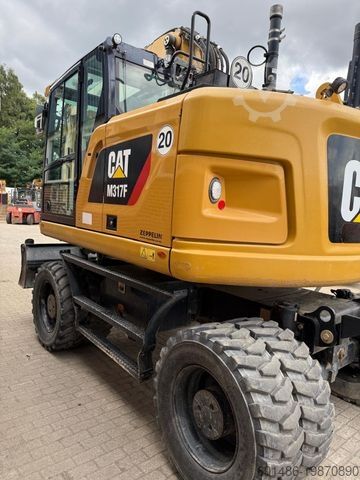

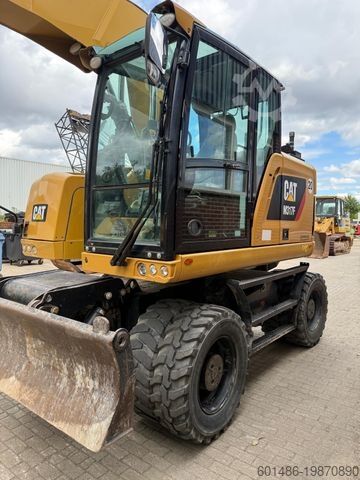

CATERPILLAR M317 F

CAT M317F (Year of manufacture ~2018)

Engine & Drive

* Engine: Cat C4.4 ACERT with twin turbo, 4 cylinders
* Displacement: approx. 4.4 L (268.5 in³)
* Power (net): approx. 112 kW / 150 HP (ISO 9249/SAE J1349)
* Max. torque at 1,400 rpm: approx. 523 lb·ft (~710 Nm)
* Emissions: complies with EU Stage IV / Tier 4 Final standards

Travel & Drive

* Maximum speed: approx. 30 km/h (~19 mph)
* Drawbar pull: approx. 104 kN (23,380 lbf)
* Gradeability: up to 70 % (at 17,500 kg)

Dimensions & Transport

* Transport length (with long boom): approx. 8.46 m (27.75 ft)
* Transport height (over cab): approx. 3.15 m (10.3 ft)
* Transport width (with parallel blade): approx. 2.54 m (8.33 ft)
* Tail swing radius: approx. 1.85 m (5.83 ft)

Weight

* Operating weight: approx. 15.3 t to 17.5 t (33,730?38,580 lb), depending on specification and configuration

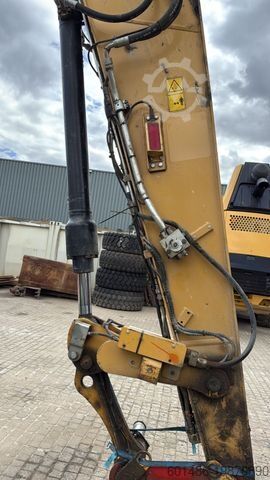

Hydraulics & Working Ranges

* Main pump flow: approx. 220 l/min (58 gal/min)
* Max. pressure – working circuit: approx. 35,000 kPa (? 5,076 psi)
Bwodpfx Ajw Tqgmef Dsg
* Swing torque: approx. 37 kN·m (27,289 ft·lbf), swing speed: approx. 9 rpm
