Volumetric Bagging System

Construcciones Mecanicas Guill S.A. SFP-CR 70

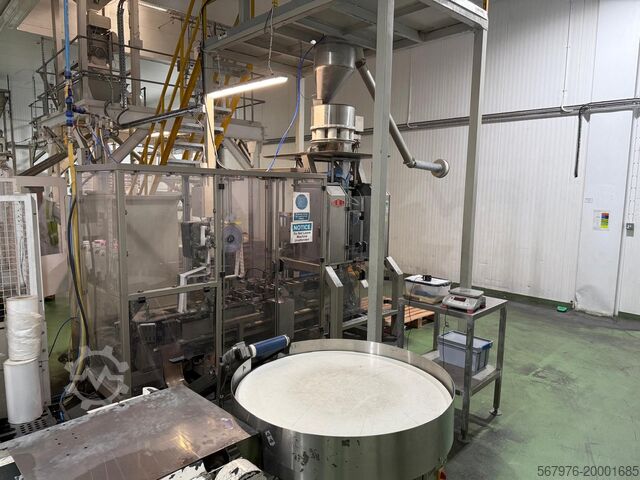

Guill Volumetric Filling and Block-Bottom Bagging System, comprising of:

Manufacturer - Construcciones Mecanicas Guill S.A.
Serial number - SP 3933 C70232.
Date of manufacture - 2004.
Hopper with sensors.
Volumetric filler with cups for 500g, 1kg and 2kg volumes.
Guill Bagger - horizontal jaws 300mm wide.
Vertical jaws 510mm. With SmartDate 2 coder / ribbon printer.

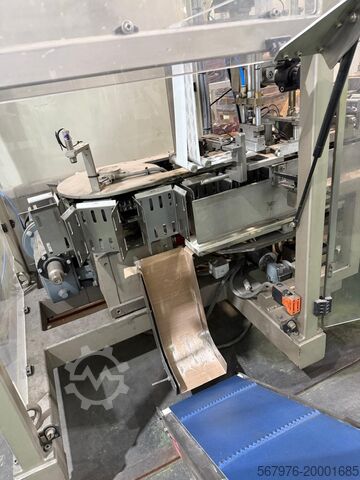

Cutting, second sealing, folding and labelling machine.

1 - pulls air out and folds
Lsdpfx Abjxcp Rzoasrg
2 - cut and seal
3 - bends folds top of pack
4 - fold clamped and sealed
5 - label applied.

Electrical control box.
Overall dimensions of above 3 machines - 3480mm long x 1700mm wide x 3650mm high.
Also supplied with:
Outfeed conveyor. Let dimensions - 1550mn long x 250mm wide.
Lazy Susan, neoprene top. 1.23m diameter x 800mm operating height.

Notes
Last production run in June 2025. Used for packing rice, could be ok for salt, sugar. Have change parts for 500g, 1kg and 2kg rice. Was being run at 38-40 packs per minute. Complete with manuals and electrical diagrams. Lots of spare small parts included - belt movers, rollers, etc.
