Line for micro-jointing (finger jointing)

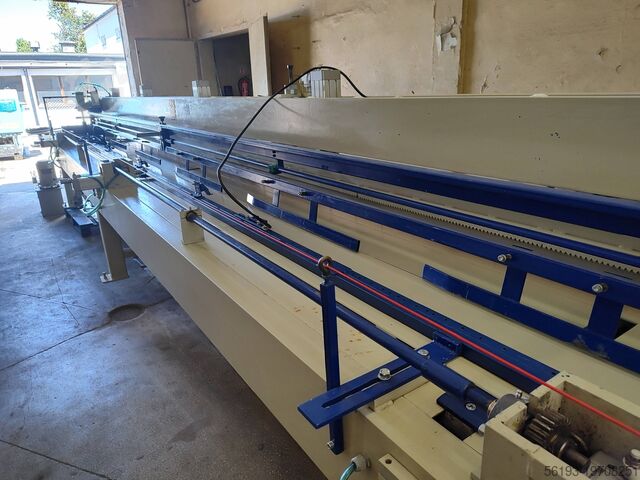

Famad finger jointing line

The PDFD joining line, in its single-milling version, consists of two main units:
a milling and tenoning machine, DFC 60M (where the tenons on the strip ends are machined), and a length joining press, PHSL, where the elements are joined into a strip with a length of up to 6.6 meters.

Input package width for the milling and tenoning machine – 650 mm
Fpedpjw Hrm Nsfx Agken
Width of glued elements – 30 ÷ 155 mm
Length of glued elements – 170 ÷ 900 mm
Thickness of glued elements – 20 ÷ 70 mm
Compressed air consumption – 18 m³/h
Working performance – cycles/min – approx. 2 (strip 6600)
Length of the glued element – up to 5500 mm

The machine is in excellent technical condition!
