Frame press

HESS Speedy Video

Working width 3550 mm
Working height 2250 mm
Number of cylinders 5 St.
loading dimensions L x W x H 4500 x 900 x 2600 mm
Hess Speedy frame press
-----
Press will be Checked

Insertion dimension / pressing length max. 3,550 mm
Insertion dimension / pressing height max. 2,250 mm


Sliding carriage for width adjustment locking in 50 mm
Double hole grid system

Electric height adjustment of the long-stroke cylinders (hydraulic)

Insertion height of the abutment plates can be preselected in 4 positions

3 vertical printing cylinders stroke 1000 mm
Pressure force per cylinder 2000 kN / 20000 N

2 horizontal printing cylinders stroke 80 mm
Pressure force per cylinder 1250 kN / 12500 N

Printing plate depth 100 mm width 140 mm
Ijdpevn U Rnofx Abneii

Grid for cylinder fixation/rear bearing 50 mm

Medium pressure beam with shut-off valve

Final pressure switch-off and pressure control

Control and pressing process in touch button operation

Adjustable pressing pressure min. 25 – max. 160 bar

Electrical connection 2.2 kW / 400V

Control for studio window gluing

2 pendulum pressure plates 45 degrees

Machine dimensions W=4500 mm, D=900 mm, H=2600 mm
Weight approx. 1800 kg

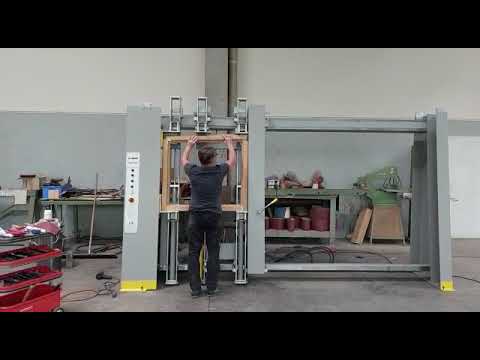

Photo and video not original, shows press of same type.

(technical data according to the manufacturer - no guarantee!)
