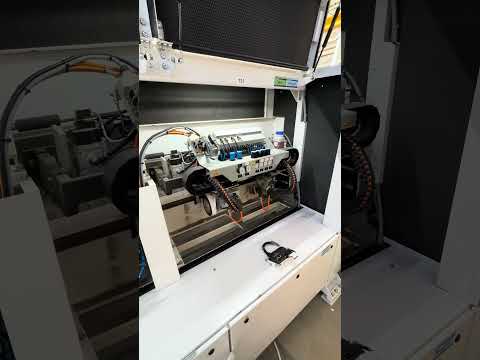

Single-sided edge-banding machine

HOMAG EDGETEQ S-500 - KAL 375/16/V20

Used single-sided HOMAG edge-banding machine for straight edges – EDGETEQ S-500
For pre-milling (jointing trimming), gluing and post-processing of various kinds of edging materials. Fixed stop on the left side.
Year of Manufacture: 2023

EQUIPMENT / SPECIFICATION
BASIC MACHINE
- with 80 mm wide conveyor chain with rubber-coated chain pads,
- workpiece thickness 8 to 60 mm
- top pressure with compound V-belt, automatic height adjustment (to workpiece thickness)
- panel support with roller guide, extractable approx. 700 mm
- glue roller drive in case of feed stop
- hand switch /remote control for setup – mode
- adjustable infeed fence with NC-axis (CAN-bus)
- Jointing trimming 2 motors each 3 kW (clockwise, counterclockwise), jumping function

GLUING SECTION V20, consisting of:
- QA65 glue application unit, with PTFE-coating (Teflon), with pneumatically operated glue gates
- pneumatic clamping of glue application
- Pre-melter for PUR glues
- Edge magazine, edge thickness min. 0,4 mm to max. 3 mm
Edge width (height) max 65 mm
- 2-fold automatic edge roll changing magazine
- Pressure zone with automatic horizontal adjustment (NC CAN-axis) to edge thickness,
1 driven & 4 non-driven pressure rollers.

POST-PROCESSING SECTION:
- Snipping (end-trimming) unit PK25 horizontal, 2 motors, with straight/chamfer cutting function
Fodpey D A Swefx Acwopi
- Edge Trimming MS40 2x0.55 kW, top/bottom
- Multifunction Corner Rounding MF60, 2 motors 0.4 kW (top/bottom) with linear motors, soft-touch
- Profile (radius-) Scraping MN11, multi scraping tool, automatic positioning and adjustment (NC)
- Flat Scraping (glue joint) FA20, top/bottom, (version with 3 tracer rollers), automatic adjustment
- Buffing Unit FP10, top/bottom

Control / software:
- powerControl PC 23 PowerTouch
- woodCommander 5
- Edge sequence control
- change-over in the gap

Machine dimensions
1085 x 180 x 235 cm (with opened doors)
