Bag forming, filling and sealing machine

Ishida - Rovema - Paal Filling, weighing and packaging line

Consisting of:

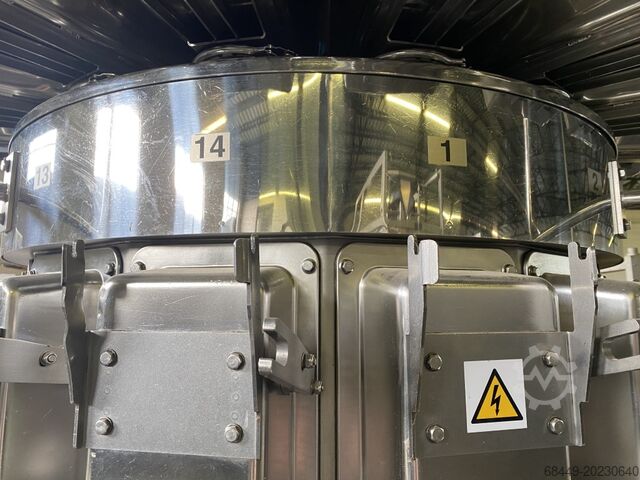

“Ishida” Multihead weigher
Type CCW-M-214W-S/50-SS
Heads: 14 pieces
Performance: up to 2 x 30 weighing’s/min
Filling weight (max. weight): 10.000 g
Accuracy: Average value 0 to +3.0 g
Weighing range: 5 - 10.000 g
Max. volume: 12.500 cc (per individual weighing)
Minimum division: 1g

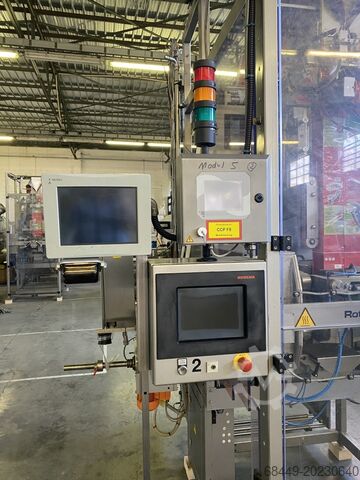

Display: Touch-screen display
Power: 230V, 50Hz
Connected load: 1,6 kW
In good condition
+

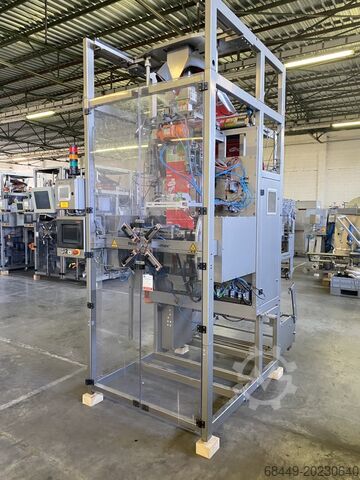

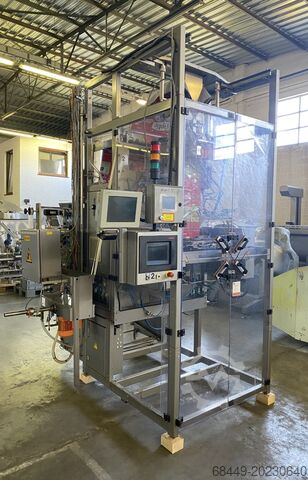

Vertical flowpackaging line “Rovema”
Type VPK360 - 14115
yoc 2001
Performance (mechanical) cycles/min: 120
roll width / diameter (max.) (mm): 770/450 (770 / 600 with front rollers)
Credjxlptuepfx Aa Tjh
bag width (min. – max.) (mm): 80-360
Bag length (min . – max.) (mm): 200-600
Filling volume (max.) (cm³): 12000
Seal pressure (max.) (N ): 6000 (optional: 8000)
Program memory: Standard: 100 (optional: 1000)
Dimensions: ( L x W x H) (mm): 2,435 x 1,680 x 2,015 mm
Weight: 1,500 kg
Mains connection (Volt): 230 / 400
Energy requirement (kVA): 8
Protection class: IP54
Compressed air connection: 6 bar
Air consumption 6 bar (NI/cycle): 0.25
Machine color: Ral 9007L / gray aluminum
Operating temperature (min. – max.) (°C) : +5 … + 45
Storage temperature (min. – max.) (°C): -30 … +60
Humidity (max. ) (%): 15…95; no condensation
in good condition
+
Vertical flowpackaging line “Rovema”
Type VPK360 - 14116
yoc 2001
Performance (mechanical) cycles/min: 120
roll width / diameter (max.) (mm): 770/450 (770 / 600 with front rollers)
bag width (min. – max.) (mm): 80-360
Bag length (min . – max.) (mm): 200-600
Filling volume (max.) (cm³): 12000
Seal pressure (max.) (N ): 6000 (optional: 8000)
Program memory: Standard: 100 (optional: 1000)
Dimensions: ( L x W x H) (mm): 2,435 x 1,680 x 2,015 mm
Weight: 1,500 kg
Mains connection (Volt): 230 / 400
Energy requirement (kVA): 8
Protection class: IP54
Compressed air connection: 6 bar
Air consumption 6 bar (NI/cycle): 0.25
Machine color: Ral 9007L / gray aluminum
Operating temperature (min. – max.) (°C) : +5 … + 45
Storage temperature (min. – max.) (°C): -30 … +60
Humidity (max. ) (%): 15…95; no condensation
in good condition
+
carton box former – Packaging machine “Paal”
Type ELLE 3000 S
Working capacity:
Max. 14 cycles / minute
Infeed capacity:
Max. 34 bags / minute
Format1 : Tray with sleeve
Filling material designation: Stand-up pouch 4.0 kg
Filling material dimensions: Approx. 240 x 105 x 370 mm
Filling weight: 4.0 kg
Grouping scheme: 1 x 3 standing
Packaging type: Tray with internal, glued-in cover and cover protection
Dimensions:
Inlet height of filling material: 650 mm
Outlet height of package: 500 mm
Installation area: approx. 8000 x 6500 mm
Please refer to the installation plan for the main dimensions (photo attached)
3 x 400V, 50Hz, 5kW
Packaging machine: Type: Elematic 3000 LS/335

in good condition
