Insulating glass making machine

Lisec Isolierglaslinie 4000 x 2500 mm

Lisec IG line 4000 x 2500 mm (1990/2001), left/right:
- RTV-27/25, extension inlet conveyor washing machine, year 1990
- RTV-38/25WE, inlet conveyor washing machine with glass thickness measurement and automatic low-e detection, year 1990
- VHW-25V8, washing machine with 8 brushes for low-e, including 2 sand filters, 2 hot water tanks and blower, year 1990
- RTVN-32/25ST, outlet conveyor of washing machine, year 2001
- RSVN-38/25A, frame set section, year 2001
- RTVN-15/25MZ, measuring zone for gas filling press, year 2001
- RTVN-11/25ST, inlet conveyor of gas filling press (or extension for measuring zone), year 2001
- FPS-36/25U2T, gas filling press for argon, year 2001
- RTVN-16/25ST, outlet conveyor 1 of gas filling press, year 2001
- RTVN-16/25ST, outlet conveyor 2 of gas filling press, year 2001
- APKV-25/2, 2-track cork applicator, year 2001
- RTVN-15/25VFE, inlet conveyor of sealing robot, with glass and frame measuring device and barcode reader for shape sealing, year 2001
Prsdewlb Ndopfx Abgsd

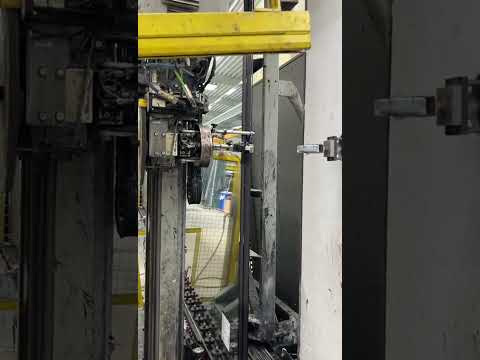

- VFL-1DS/25, sealing robot, including options for triple units (2 sealing cycles), stepped elements (bottom 0-50 mm, front, rear and top 0-140 mm), as well as special shapes according to Lisec special shapes catalog, Beckhoff PC, year 2001
- DOS-1PUD + SID, material dosing for PU (base 2 x 200 liters, liquid hardener 200 liters) and SI (base 200 liters, hardener 20 liters), year 2001

Availability of the system: end of 2025/beginning of 2026
