High-bay warehouse pallet racking system

META Rack / Regallänge: 20,49 lfm St.:4.000 x 1.100 mm / Tr.: 3.310 mm

Technical data for the pallet racking system:
Racking system: META Rack

Technical data for installation:
Number of rack rows: 01 unit
Length per rack row: 20,490 mm
Number of bays per rack row: 06 units
Number of levels incl. ground level: 02 units

The scope of delivery includes:

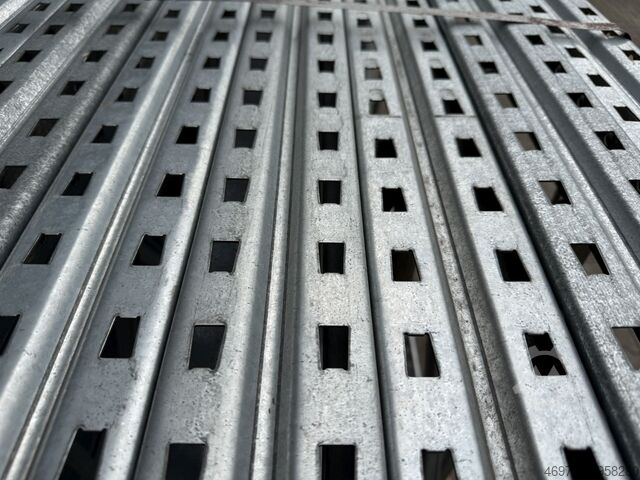

07x pallet rack frames, used
Ppjdexbcukepfx Ah Uer
Material finish: Sendzimir galvanized
Profile dimensions: P 90 x 65 x 1.50 mm
Frame type: PN-15
Including horizontal and diagonal braces,
base plates
The frames are pre-assembled
(bolted lattice construction)
Height: 4,500 mm
Depth: 1,100 mm

24x pallet rack beams, used
Material finish: orange
Box profile: 110 x 50 mm
Beam type: 110|55
Connector: 4 HK (hooks)
Clear span: 3,310 mm

07x upright protectors, used
Material finish: hot-dip galvanized
Total height: approx. 970 mm
Total width: approx. 98 mm
Internal width: approx. 92 mm
Total depth: approx. 40 mm
Material thickness: approx. 3.00 mm
Drill hole diameter: approx. 11 mm
Number of drill holes: 04 units

48x locking pins, used
Material finish: Sendzimir galvanized
For securing the cross beams
against accidental lifting

28x wedge anchors, new
Manufacturer: Hilti
Model: HST2 M12x105/10
Version: carbon steel, galvanized
Approved for: cracked concrete

14x leveling plates, used
Version: fully galvanized
For leveling rack frames installed
on uneven floors

01x load sign
With specifications of bay and shelf loads,
manufacturer and commission number
Dimensions: 420 x 297 x 3 mm

Your contacts at our company:
Mr. Andre Evering
Mr. Mario Klöver
Mr. Falk Deutsch

General information about the article:
This item is offered for collection only. Any additional transport or shipment of this item
is subject to additional charges, which can be requested from us separately depending on the delivery location and scope.
