Wood splitter

Pinosa CPE1200

Pinosa CPE 1200 Semi Automatic Firewood Processing Machine

Machine Type: Firewood Processing Machine
Year: 2017
Condition: Very Good, has had very little use.
Powered By: 3 Phase, Diesel Generator or PTO.

Includes
FG Wilson P110 110kVA Diesel Generator
Feeding Deck

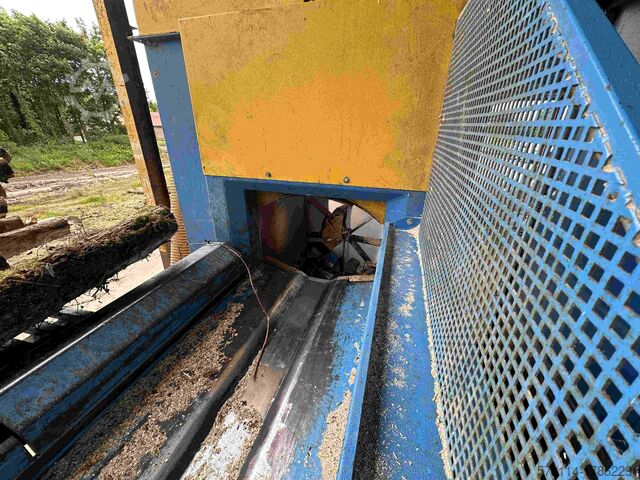

Extraction Conveyor with Sieve and Cyclone for Sawdust

Machine Description
This is a mobile, self-contained wood cutting and splitting machine. It allows you to saw and split sizes of wood from 50 to 480mm diameter, while being movable. The machine can thus be transported on a truck, then installed on demand autonomously using 4 jacks. It is therefore suitable for both the service provision market and for on-site production. Finally, note that it only requires a single operator to produce up to 16T of firewood per hour .

Iedpfx Aevbdyxodieht
Technical Specifications
Blade Diameter: 1200mm
Max Length of Tree Trunk: 6000mm
Min Length of Tree Truck: 800mm
Max Diameter of Tree Trunk: 480mm
Min Diameter of Tree Trunk: 50mm
Max Cut Off Length: 1100mm
Min Cut Off Length: 200mm
Splitting Possibilities: 2-4-6-8-10-12-14-16
Splitting Cylinder Power: 35T
Max Hourly Throughput: 16T/H

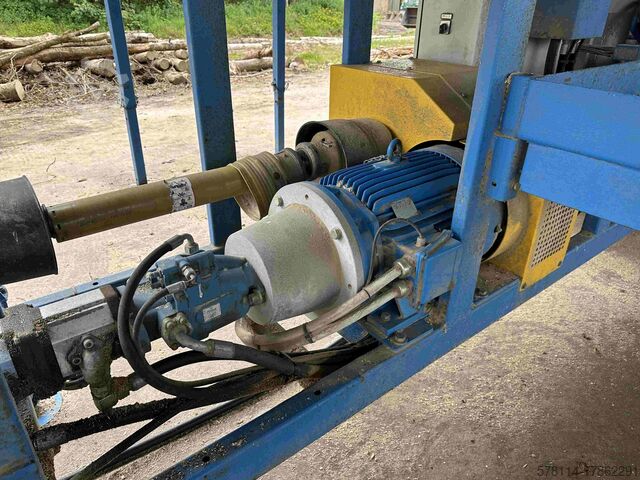

Power Connection Options: Electric Motor/Electric Generator/PTO
Motor Power: 37kW
Machine Weight: 8500kg
