Screening plant

SBS SBS 1820 F2

Screening unit SBS 1820 F2
The big brother of the screening plant SBS 1520 F2
Even more efficient due to 1.80m long screen panels!
Double deck screening box with 8 steel springs and a total of 7.2 sqm screening surface!
The screening plant is perfectly suitable for screening topsoil but also for other bulk materials such as:
Sand screening, compost screening, construction waste screening, recycling material screening, topsoil screening, excavation screening, , gravel screening, coal screening, scrap screening, slag screening, humus screening, asphalt screening, milled material screening, compost screening....
The small mobile screening plant with a huge capacity.
Gsdpfogmtyfex Ag Hskf
Thanks to the 8 steel springs and 7,2qm screening surface a very good screening result is guaranteed.
The transport of the screening plant can be carried out without any problems by means of a trailer or a flatbed truck.

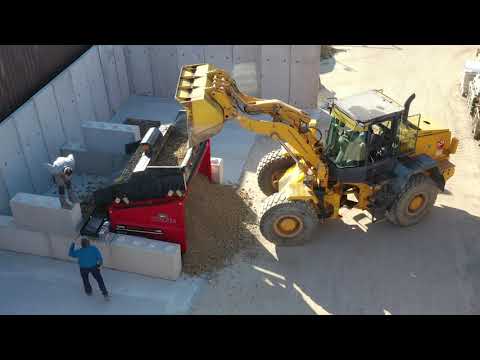

Loading and unloading by means of forklift truck or wheel loader fork
Screening capacity up to 80 tons depending on the nature of the material to be screened
Operating weight approx. 1500 kg
Drive 400V / 1,1 kW / (16 A)
Control cabinet with circuit breaker, emergency stop switch and hour counter
2 deck screening plant
Screening area upper deck 2 x 1,8m
Screening area lower deck 2 x 1,8 m
Overall dimensions:
Width: 1,80 m
Length: 2,85 m
Height: 2,68 m
Video of the screening plant on our homepage
