Schäfer Logimat SSL 3225-625-6950/200

Schäfer Logimat 3225-625-6950/200

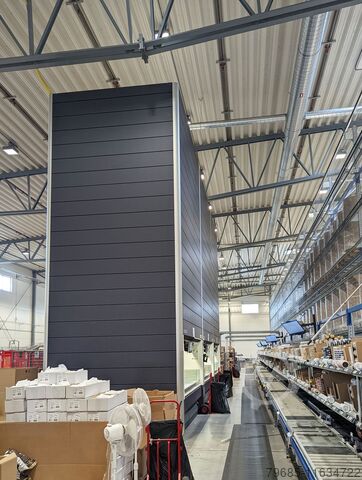

We can now offer one Vertical Lift Modules from SSI Schaefer of the latest model. SSI Schaefer is the world's leading manufacturer of warehouse automation and their model of vertical storage lifts Logimat SSL is just like their other solutions, of the highest quality and standard.

These vertical lift is configured with 3 225 mm wide shelves but with slightly shallower shelves than standard, 625 mm, this is often appreciated by warehouse / factory staff for ergonomic reasons. Each shelf provides 2.02 m² of storage space and with 34 shelves per lift, this gives about 68.5 m² of storage space on a floor area of about 10 m² per machine.

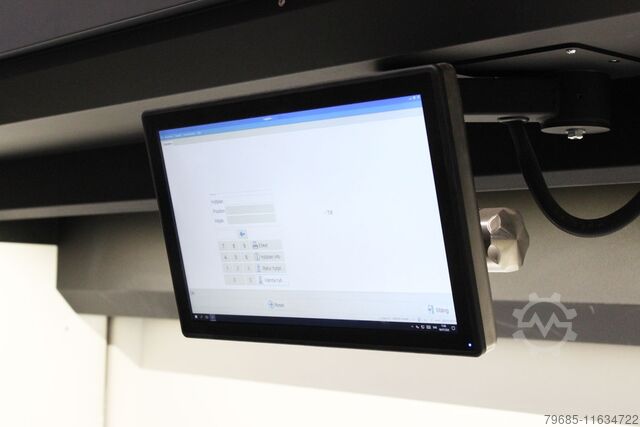

The Vertical Lift Module is each equipped with a 17" touch display and without external software, the control panel can be used to manage shelves, handle user management, optimize shelf placement and monitor the weight of each shelf. The lifts can also be connected to a WMS/ERP if necessary.

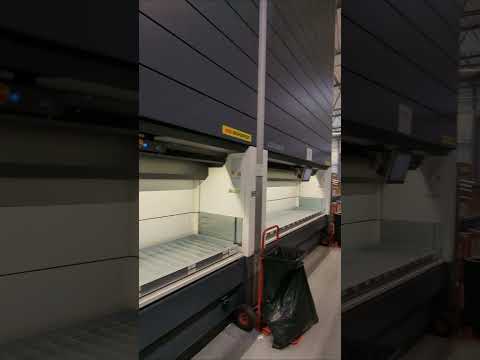

These objects come with the option "LogiGate"; doors in the opening that open/close when the elevator machines pick up/drop off shelves. This option reduces dust and dirt in the machine and lowers the noise level when the lift is running.

Available for immidiate delivery. Shipping and installation not included.
Itodpfx Aendcbcjnfjf

Manufacturer: SSI Schäfer
Manufacturing year :2019
Model: Logimat SLL 3225-625-6950/200
Height: 6 950 mm
Width vertical lift module / tray: 3 735 mm / 3 225 mm
Depth vertical lift module / tray: 2 712 mm / 625 mm
Number of trays: 34 trays per unit
Maximum weight per tray: 200 kg
Electronics: 25 A, 400 V
