Machine Overview: Schlatter MG900 MG12 Mesh Welding Machine - "Offical Expose upon request"

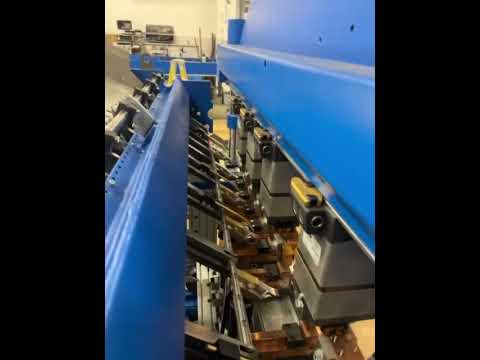

The Schlatter MG900 is a powerful and refurbished resistance welding machine, specifically designed for the production of wire mesh panels. With a width capacity of up to 1250 mm and a length of 3000 mm, it handles wire diameters of up to 12 mm. This machine has undergone extensive modernization to deliver maximum efficiency and flexibility in production.

Main Components
• LV - Longitudinal Wire Feeder
o Upgraded with a high-precision servo axis
o Hopper magazines for longitudinal wires up to 3000 mm
• MG12.4 - Mesh Welding Unit
o Equipped with 3 to 6 transformers.
o Up to 12 Schlatter welding presses with a capacity of 5 kN
•QFD34 - Cross Wire Feeder
o Allows for double cross wire insertion for two different cross wire diameters / length, *Note: The second level is not yet installed in the photos
• MVL - Mesh Extraction Unit
o Controlled by a new MS2N Servo Motor from Bosch Rexroth CrtlX
o Equipped with four Schlatter mesh grippers (expandable upon request)
• MS - Mesh Stacker
o Automatically stacks mesh panels with a travel path of up to 3100 mm
• Control and Power Cabinet
o Siemens S7 TIA Control System
o Rexroth CrtlX Components for high-dynamic motion control

Specs:
• Mesh Width (Transverse Wire Length) max. 1250mm / min. 200mm
• Mesh Length (Manual Loading) max. 3200mm / min. 300mm
• Distance Between Outer Longitudinal Wires max.1200mm
• Longitudinal Wire Spacing 20 - 150mm
• Cross Wire Spacing min. 12.5mm
• Longitudinal Wire Diameter 2.0 - 10.0mm
Pgedpfx Afsvtg Sbjtjw
• Transverse Wire Diameter 2.0 - 8.0mm
• Maximum Number of Longitudinal Wires max.24
