Two-fraction star screen

Anlagenbau Günther MULTISTAR ONE / MS ONE

No. 10017

Two-fraction star screen GÜNTHER MULTISTAR ONE / MS ONE

Used, year of construction 2023

Nksdpfx Abewhy T Tekou
Approx. 200 operating hours

Mobile star screen for screening waste wood, biomass, green waste and other screenable materials in 2-fractions as well as for overlength recycling

- Input material: specific weight 200 - 650 kg/m³ / moisture max. 55% / piece size and individual weight max. 1000 mm and 20 kg / material feed with conveyor belt or wheel loader / throughput capacity up to 200 m³/h

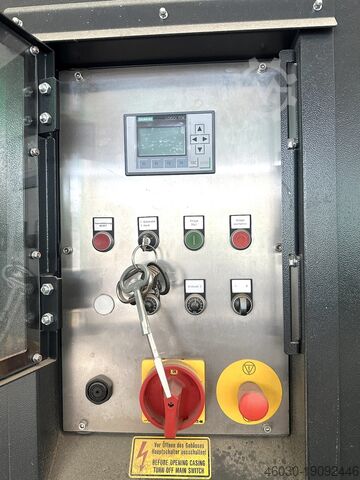

- Control, operation, switch cabinet: Type PLC / Operation display, control panel / Manual or automatic operating mode / Power supply AC 400 V, 3P, 50Hz via 32A plug on site

- System interlinking: 16-pin plug connection / Cable (15 m) incl. winding device on base frame / Screen deck overrun for EMERGENCY STOP / Dummy plug in control cabinet door

- Hydraulic support legs: 4 hydraulic support legs / Increase the discharge height of the useful fraction by 450 mm / All support legs can be controlled individually

- Feed hopper: Capacity approx. 2.5 m³ / Feed height 2500 - 3000 mm / Free throw-in length 2300 mm / Conveying medium scraper chain conveyor with maintenance-free flat link chain / Drive 2.2 kW adjustable via frequency inverter

- Collecting belt: Center distance 4600 mm / Belt width 1000 mm / Belt type smooth / motor 2.2 kW, v=1.2 m/s

- Connect: Connect! is the innovative telematics solution from Komptech / overview of operating status, error messages, statistics, GPS localization, capacity utilization

- Petrol-powered hydraulic pump

- HyDrive System 2.0 MS ONE

- Screen deck 60/90: Output: 0-60/90 and > 60/90 mm / Length 4500 mm / Width 1450 mm / Screen area 6.5 m² / Position 11° incline / Star shafts 17 pieces / Star diameter 340 mm / Star width 55 mm / Center distance 266.5 mm / Cleanstar cleaning elements / motor 2 x 4 kW / Adjustable via frequency inverter

- Drive motors 50 Hz: motors for driving the screen deck / 2x 4 kW 50 Hz

- Dosing roller: width 1560 mm / diameter 215 mm / drive 3 kW drum motor

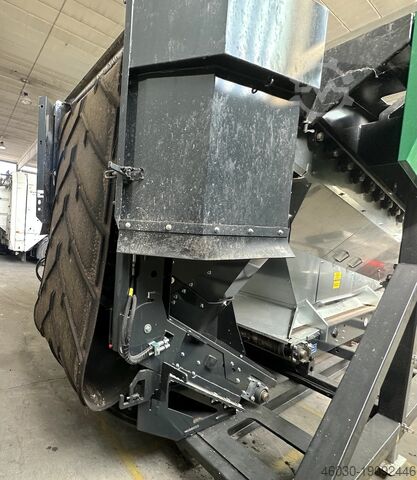

- FKAB with magnetic drum: Center distance 6200 mm / Belt width 1000 mm / Installation position 30° inclined / Belt type profiled, 15 mm chevron / 3.0 kW motor, v=2.2 m/s / Usable discharge height 3500 mm - 3950 mm / Multi-pole magnetic drum in permanent version / incl. discharge chute

- Over-grain discharge conveyor: Center distance 6200 mm / Belt width 1000 mm / Installation position 30° inclined, 220° pivoting / Belt type profiled, 15 mm chevron / motor 3.0 kW, v=2.2 m/s / Usable discharge height 3600 mm - 4050 mm

Transport dimensions approx. 8176 x 2466 x 2600 mm LWH
Weight approx. 9200 kg

Sale on behalf of customer, ex location near 85456 Wartenberg, without dismantling, transport and assembly
Subject to errors in the description and price
Dismantling, transport and loading by us optionally possible

To avoid possible misunderstandings, an on-site inspection is possible and recommended by appointment

Sold as is

Technical details, condition description, year of manufacture and scope of delivery according to manufacturer's brochure or previous owner, without guarantee
Subject to prior sale
No warranty is given for used machines, the following applies: “purchased as viewed”
Images and videos serve as examples and do not represent the actual scope of delivery

Terms of payment: Prices excl. VAT, payment before collection or shipping

Terms of delivery: ex location
