Edge banding machine

Casadei E550F

Automatic edge banding machine with bottom glue pot for hot melt adhesive (EVA), and, depending on the model, also suitable for polyurethane (PUR) on request. Features include a jointing/milling unit, corner rounding device, spraying system, and buffing unit.

Feed speed: 9 m/min
Panel thickness: 50 mm
Edge thickness from roll: 3 mm
Edge thickness solid wood strips: 5 mm
Chain feed
Prefeeding/jointing and gluing unit
Corner rounding device
Unit adjustment by sample edges
or
Unit adjustment by scale
Simple and intuitive controls

Machine equipment:

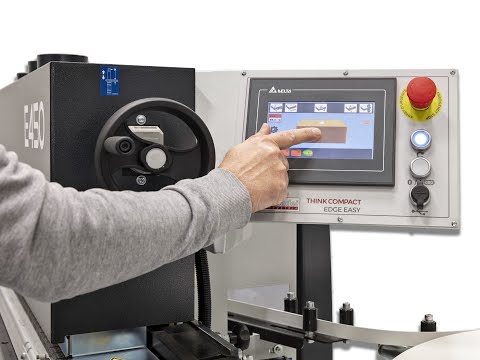

Display: 7'' color touchscreen
Option for programmable memory operation
Graphical interface directly indicates processing result on the panel
Single-click access to desired processing function
Interchangeable glue pot
6 heating elements ensure guaranteed, uniform glue temperature
Motorized glue application roller with internal electric heating element
Teflon-coated glue pot for fast and thorough cleaning
EVA & PUR in the same glue pot possible! (depending on model)
Quick-change system for fast and easy glue pot replacement
Teflon-coated glue pot for complete and easy cleaning
Glue pot capacity: 1 kg
Depending on adhesive type, two different temperatures with automatic standby function can be set

Tool kit R = 2 mm
Quick change between processing types: thin edges, radius, solid wood strip
2 HF motors 200 Hz, 12,000 rpm
Flush trimming unit with multi-profile tool for thin edge and solid wood radius
Nesting package optional
Scraper unit
Flat surface scraper
Buffing unit
Lodpfxoxanllo Abtohp
Cleaning spray unit
Electronically controlled spraying function
2 spray nozzles (top and bottom) and fluid tank
LED interior lighting
The LED interior lighting ensures safe machine adjustments even in low ambient light

The complete price list will soon be available in German.
List prices subject to our discount, which will be passed on to you.
See the attached PDF document for all details.
All machines available. Please note respective delivery times.
Installation, training, and repair services provided by Bima throughout Germany.
Contact us for more information :)
