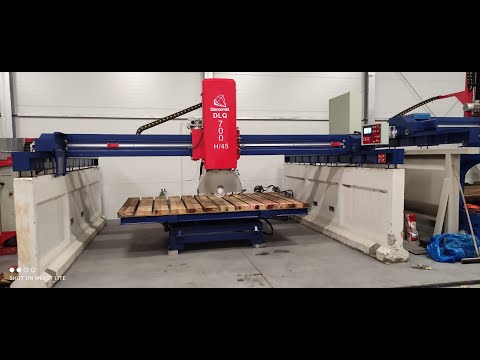

Stone circular saw with 45 degree tilt

Dianormet DLQ-700H45

Stone circular saw for masonry applications, capable of performing both straight and 45° angled cuts. The machine features a tilting worktable up to 85°, with table rotation ranging from 0° to 90°. The cutting head is tiltable from 0° to 45°, without rotation. Due to its weight (~6 tons), the machine is extremely robust and stable. Straight-toothed racks are used in the construction. The maximum saw blade diameter is 700 mm. The circular saw is equipped with the highest quality components from Siemens and Schneider. Machine control is provided via a touchscreen and control panel buttons. The main motor and axis drive motors are fitted with inverters, enabling smooth speed adjustment. A built-in laser can be used for setting the cutting line. The Z-axis is hydraulically driven. Manual limit switches are used to set terminal positions.

The machine can operate in either manual or automatic mode. In manual mode, the machine is primarily operated with buttons on the control panel. In automatic mode, it is possible to save several different cutting programs for the X-axis (left-right) and Y-axis (front-back).

✔ Cutting Modes
* Manual – head movement controlled via joystick on the control panel
* Automatic – head movement is automatic according to preset cutting programs

Pjdpeqy Ebhjfx Abgerd
✔ Machine Construction
* Durable, stable foundations
* Reinforced main gantry
* Tool head tiltable up to 45°
* Tilting table up to 85°, rotatable 0° – 90°

✔ Movement in Specific Axes
* X-axis – cutting motion left-right (tool carriage movement along the gantry)
* Y-axis – gantry movement front-back (gantry movement along horizontal guides)
* Z-axis – vertical movement of the head
* A-axis – tilt of the head (0° – 45°)
