Coordinate measuring machine

Hexagon Optiv Performance 442

Hexagon
Type: Hexagon Optiv Performance 442
Product description:
The Optiv Performance 442 3D multisensor coordinate measuring machine combines optical and tactile measurements in one system.
The system supports multi-sensor measurements with vision sensor, tactile sensor, TTL laser (Through-The-Lens)
and the innovative chromatic white light sensor (cws).
The basic device with vision sensor can be modularly expanded with all available sensors.
Areas of application:
٠ Use on level ground
٠ Versatile geometry measurements and GD&T analyses with standard accuracy Construction
٠ Design principle:
" Low-vibration granite construction with fixed bridge and movable table
" Integrated substructure with optional vibration dampers
٠ Guides: " Precise mechanical linear guides in all axes
٠ Drives: " DC servomotors, power transmission via backlash-free ball screws in the center of gravity
٠ Length measuring system; " Incremental length measuring system
٠ Resolution; 0.1 pm

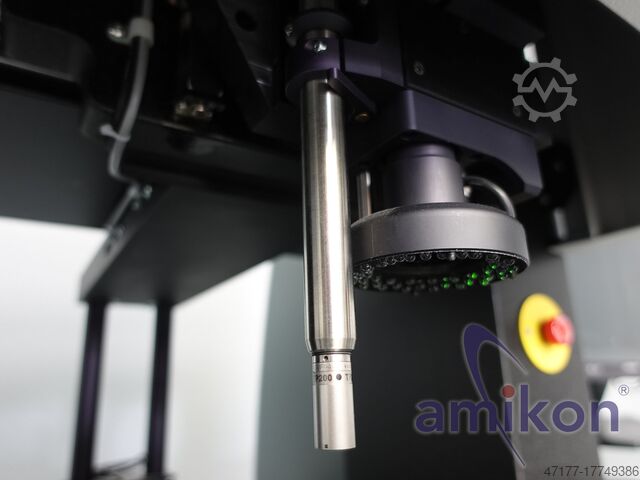

Hexagon Optiv 442 multi-sensor measuring device equipped with camera, laser and Renishaw touch probe.
- Measuring range single sensor: 410x410x200mm
- Dimensions: 1232x910x1663mm
- Weight: approx. 940kg

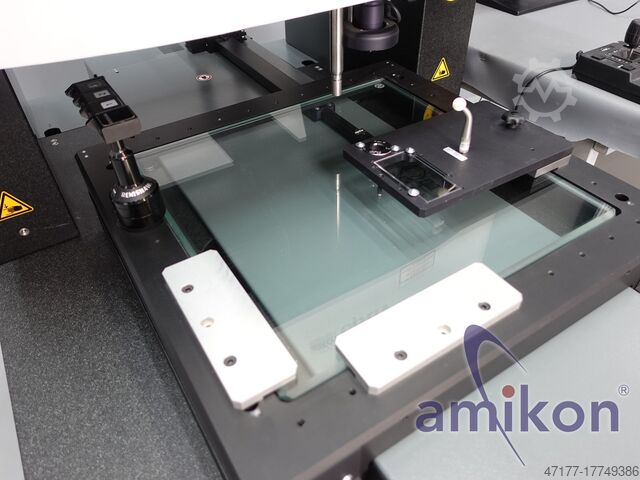

- max. load weight: glass plate 30kg
- Accuracies: U1=1.9 + L/200; U2=2.4 + L/150; U3=2.9 + L/100 (L= measuring length in mm)
- Max. travel speed per axis: 200mm/s
- Camera with 2-stage zoom
- laser
- LED ring light
- Renishaw 6-fold probe changer
- Renishaw TP200 touch probe
- Monitor operation
- Windows 7 Ultimate evaluation station
Bedpfx Ahsu Szpms Djdk
- Measuring machine HEXAGON Optiv 442
Electrical connection values:
Voltage 115/230 V ± 10%
Mains frequency 50/60 Hz ± 5 %
Power consumption 1000 VA
Weight: approx. 1100 kg
Condition: second-hand / used
Scope of delivery: (see picture)
(Subject to changes and errors in the technical data and specifications!)
