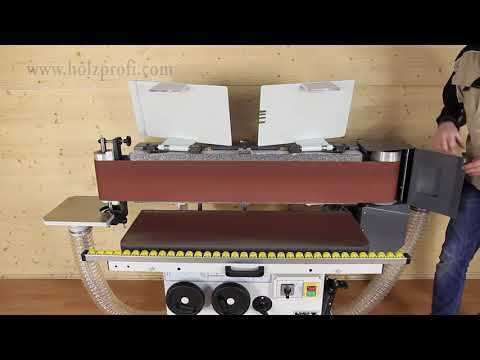

Edge grinding machine KSM3000 TV 200 VK

Holzprofi 7-KSM3000TV20VK

Machine stand in a torsion- and vibration-free design, extremely stable.

Grinding unit adjustable up to 45° using a handwheel.

Grinding belt oscillation with separate gear motor.

Height-adjustable grinding table to utilize the entire belt width.

Standard veneer edge grinding device with fine adjustment, contact shoe, relief rollers and stops.

Height-adjustable additional table with suction for grinding radii.

With spring-loaded belt tension.
Ndedpfx Ahevrvctereb

With table extension and feed console.

100% Made in EU (developed, built, quality tested)

Technical data:
Table size 960 x 350 mm
Table height adjustment 230 mm
Belt length 3000 mm
Belt width 200 mm
Belt speed 20 m/sec
Oscillation stroke 20 mm
Oscillation motor power 0.25 kW
Main motor output 3.8 kW S6 400V (3 kW S1)
Weight 400 kg

Optional equipment:
Miter stop
